Description
VELOCEX 175
The circular sawing machine for high-speed cutting of solid bars of diameter of up to 175 mm that overcomes any high-speed cutting limit.VELOCEX 175, automatic circular sawing machine for 0° high-speed cuts of steels and alloys.

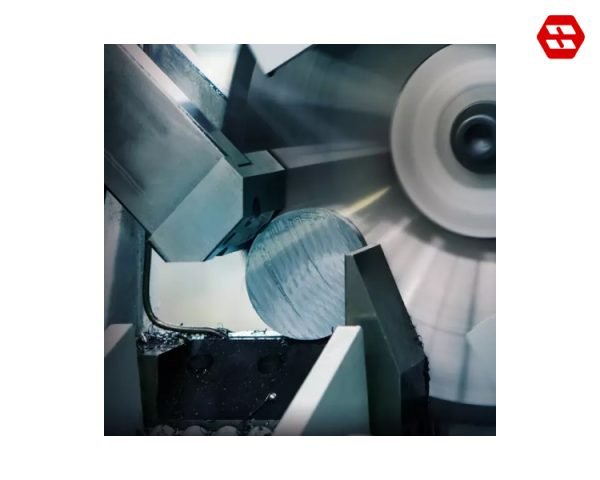

High-Performance Circular Sawing Machine For Mass Production
High-speed circular band sawing machine for large-scale mass production: cutting performance at least twice higher than a band sawing machine.

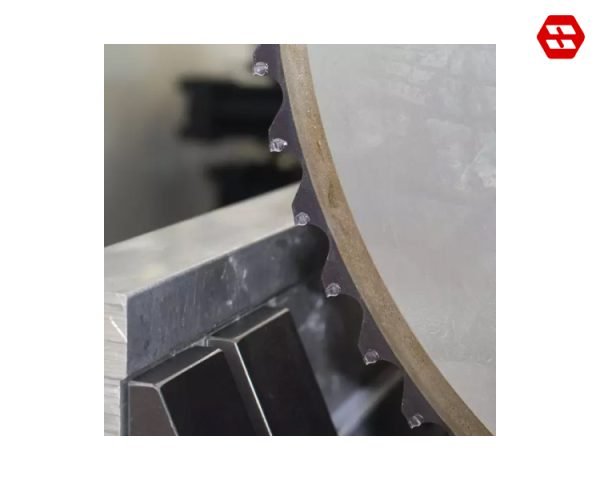

Carbide Tipped Circular Saw Blade
Carbide tipped circular saw blade for high production, excellent finishing and accuracy in lenghts.

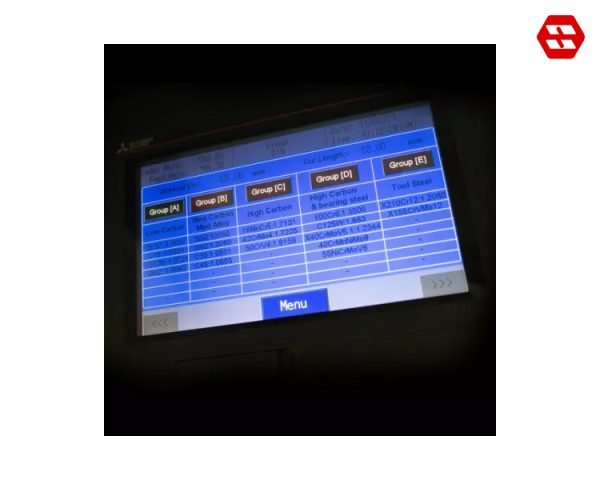

Material Library For The Automatic Setting of The Blade Rotation Speed and Head Down Feed Rate
The extendable material library, you can choose the type and the geometry of the material, the hardness and the type of blade. Accordingly, the control sets the right blade speed and head down feed rate.

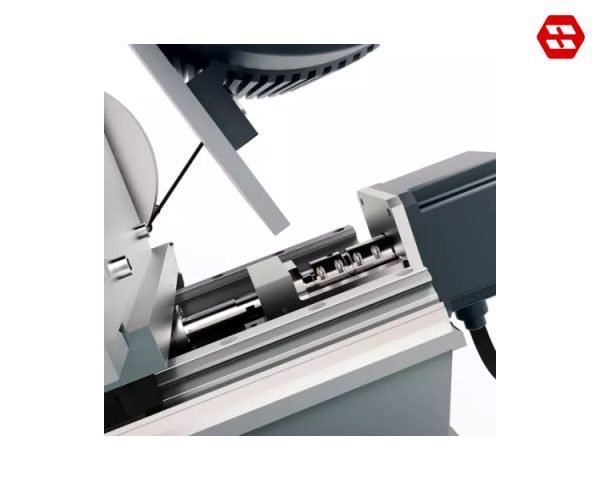

Motion of The Saw Head Powered by a Servo Motor
Motion of the saw head powered by a servo motor on linear guides with preloaded ball screw lines on ball screw nut that ensures a mechanical vibration reduction during the cut, thus giving the machine greater cutting stability.

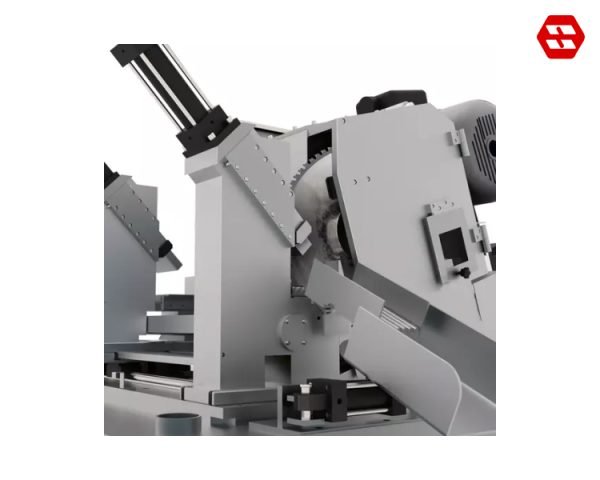

Double Clamping Hydraulic System of The Material
Bar feeder double clamping system with single stroke of 500 mm repeatable to cut to any length and sliding on ball screw linear guides through brushless motor and ball screw nut, thus granting the utmost accuracy.

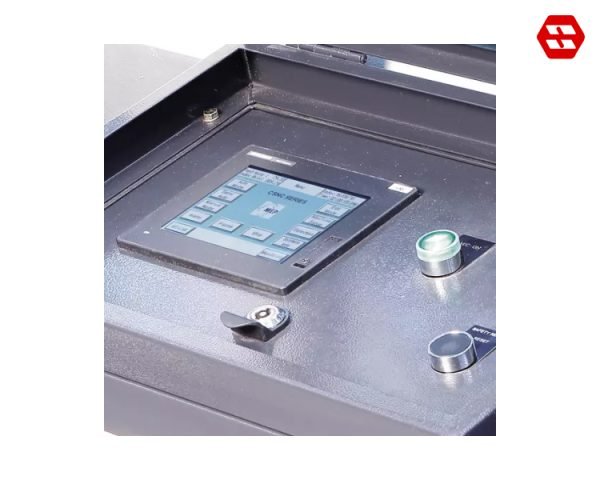

User-Friendly Progamming
8'' Mitsubishi touchscreen control allowing to set: saw head down feed rate, chip load, blade speed, number of cuts to execute, material size, cutting length. Moreover, it shows cutting time, cycle time and number of cuts executed.
Technical Data Semi Automatic Circular Saw Machine VELOCEX 175 MEP
CUTTING RANGE
 |  |  | |
| 0° | 175 mm | 130 mm | 145 mm |
PERFORMANCE CHARACTERISTICS
| Max. vice opening | 130 mm |
| Minimum cut off length | 20 mm |
| Remnant length | 100 mm / 120 mm + cut length |
| Circular blade size | 560 x 3.0 x 2.5 x 50 – 4/15/80 & 4/12/90 mm |
| Blade motor | 30 Kw – Three-phase |
| Blade speed | 50 ÷ 200 m/min |
