Bandsaw Machine Automatic Mitre HBE610-1256GA BEHRINGER

Mesin ini memiliki pemotongan presisi dengan kemampuan miter otomatis. Dirancang untuk efisiensi dan akurasi, mesin ini cocok untuk industri yang memerlukan pemotongan miring tanpa penyesuaian manual. Sistem otomasi canggihnya memudahkan proses pemotongan, memastikan hasil yang konsisten dan berkualitas tinggi. Mesin adalah solusi serbaguna untuk  lingkungan manufaktur yang ingin meningkatkan produktivitas dan memotong dengan presisi.


Automatic Mitre HBE610-1256GA

The high-performance automatic mitre band saw HBE610-1256GA is designed for automatic sawing of structural steel, profiles and pipes.

Automatic Mitre BandsawHBE520-926GA 1

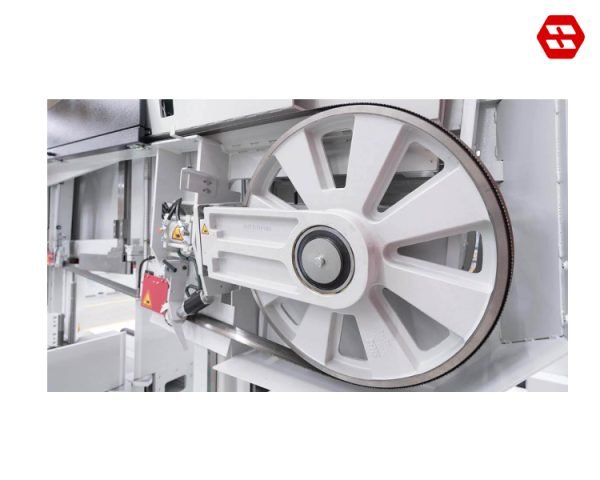

Cast Iron Band Guiding Parts

Are made by BEHRINGER and provide vibration damping directly at the cutting edge, thus increasing tool life.

Cast iron band guiding parts 12

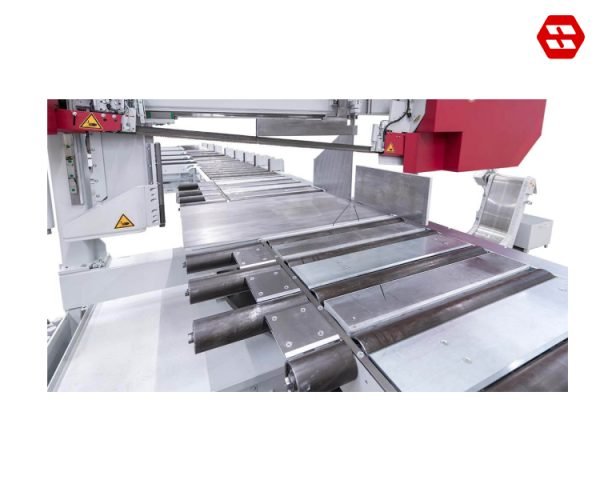

Enclosed Material Table

An Enclosed Material Table offers a secure and organized workspace for handling materials in various industrial applications. With protective barriers or sides, it ensures safety by containing materials within the table area, preventing spills or accidents.

Enclosed material table 6

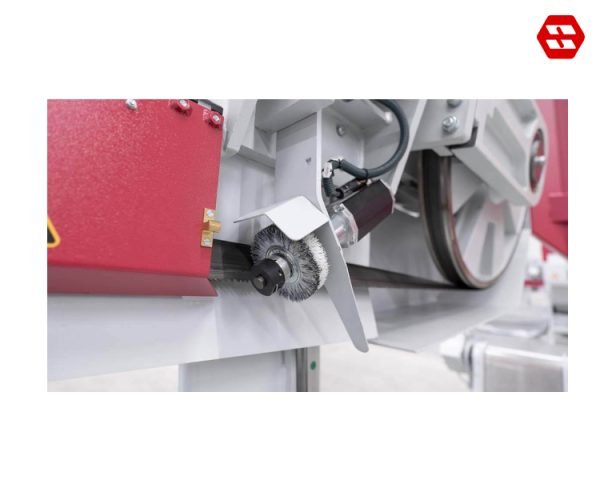

Electrically Driven Chip Brush

With BEHRINGER quick-change device for tool-free brush changes. The teeth of the saw band are protected by the special engagement angle.

Electrically driven chip brush 20

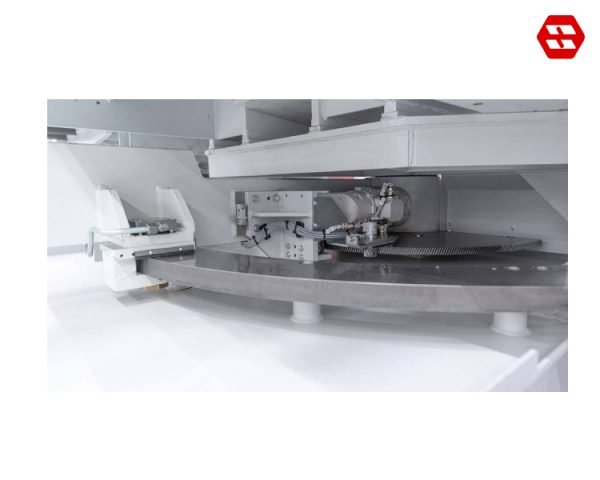

Fast NC Mitre Angle Adjustment

Fast NC mitre angle adjustment is a cutting-edge feature incorporated into industrial machinery, enabling rapid and precise modifications to cutting angles through advanced numerical control technology. This innovative capability streamlines operational processes, enhancing efficiency and accuracy in metalworking and fabrication tasks.

Fast NC mitre angle adjustment 2

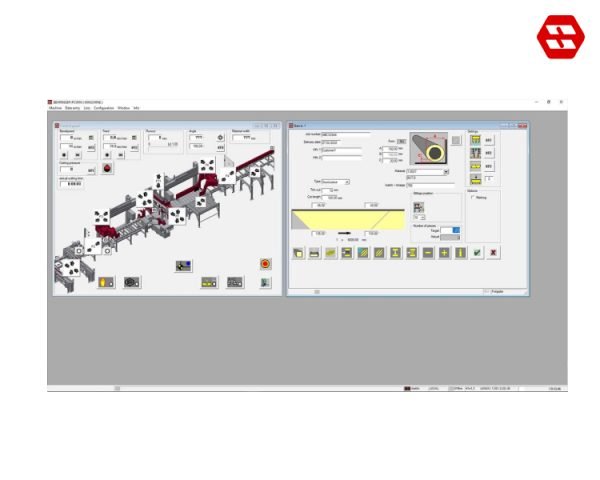

Powerful PC Control

The Powerful PC Control system offers advanced computing capabilities for precise and efficient management of industrial processes. With robust hardware and intuitive software, it enables comprehensive control and monitoring of equipment, ensuring optimal performance and productivity.

Powerful PC control 3

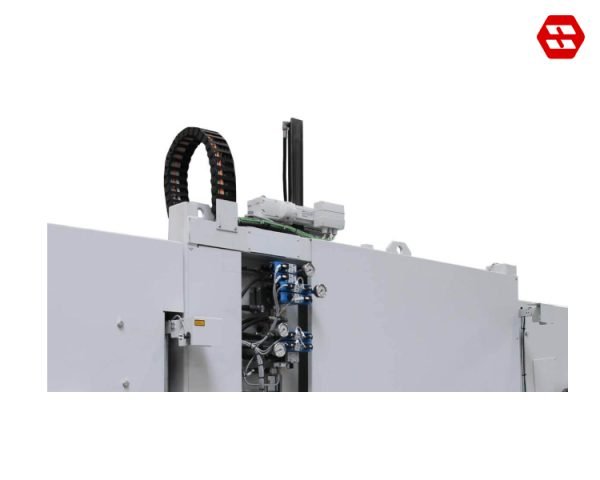

Servo Feed System With Cutting Pressure Control

The Servo Feed System with Cutting Pressure Control combines servo technology with precision pressure control for efficient and accurate metal cutting. This advanced system optimizes feed rates while dynamically adjusting cutting pressure, ensuring consistent and clean cuts across various materials

Servo feed system with BEHRINGER cutting pressure control 3

Features of The Metal Cutting Bandsaw HBE610-1256GA

Sensitive BEHRINGER Cutting Pressure Control.

Increases the cutting performance when sawing tubes and profiles, as it automatically adapts the saw feed of the machine to the changing material cross-sections.

Downfeed Control With Servo Drive

The saw feed is carried out by means of a ball screw and servo motor. This results in considerably shorter non-productive times and more precise saw feeds.

Safe Material Flow - Even With Short Starting and Cut-off Lengths.

The closed table support and the clever connection to material handling systems offer maximum process reliability in fully automatic operation.

Precision Portal-Design Guide System.

The combination of stable, low-vibration saw frame and the linear guide system in portal design ensure the best band sawing results and maximum service life.

6° Inclination of The Saw Band

Provides significantly higher cutting performance when sawing large beams and hollow profiles and reduces burr formation.

Automatic Guide Arm.

Optimum sawing result without any adjustments - even with frequently changing material sizes.

Micro Spray System.

When sawing profiles, pipes and solid material, the standard minimum quantity lubrication system delivers the best results. The saw blade is constantly moistened with cutting oil via two nozzles.

Powerful Saw Drive.

With a wide range of blade speed adjustment offers flexibility for various starting materials from stainless steel to aluminium.

Double Clamping Vice.

Offers process reliability - especially when sawing bundles or making single cuts.

Feed Gripper With Retracting Fixed Jaw.

For automatic positioning of the starting material, the automatic mitre band saw HBE320-523GA has a 3,000 mm long feeding gripper

Customer-Oriented Sawing Concepts.

BEHRINGER offers complete system solutions with individual material handling where everything fits together perfectly.

Technical Data Mitre Bandsaw HBE610-1256GA

Cutting Range
Cutting range 90° round610 mm
Cutting range 90° flat1.250 x 610 mm
75° Mitre left round / flat610 mm / 1.200 x 610 mm
60° Mitre left round / flat610 mm / 1.100 x 610 mm
45° Mitre left round / flat610 mm / 880 x 610 mm
30° Mitre left round / flat610 mm / 610 x 610 mm
75° Mitre right round / flat610 mm / 1.200 x 610 mm
60° Mitre right round / flat610 mm / 1.100 x 610 mm
45° Mitre right round / flat610 mm / 880 x 610 mm
Smallest dimension to be sawn round30 mm
Smallest dimension to be sawn flat30 x 30 mm
Performance Characteristics
Feeding length single stroke3,000 mm
Drive power7.5 kW
Blade speed17 – 120 m/min
Saw blade dimensions10.000 x 54 (67) x 1,6 mm
Rest piece length in automatic operation280 mm
Minimum cut length25 mm
Total power16 kW
Saw feedServo feed via ball screw
Material feedservo motor via gear rack
Material clampinghydraulic
Saw blade cleaningelectrically driven chip brush
Dimensions and Weight
Length7.000 mm
Width4.700 mm
Height3.240 mm
Weight7.500 kg
Material support height800 mm
