Circular Saw Machine Automatic Mitre PSU 450 M BEHRINGER

Merupakan mesin gergaji bundar otomatis yang memadukan presisi, efisiensi, dan keserbagunaan. Dirancang untuk menangani beragam tugas pemotongan, alat berat ini unggul dalam membuat pemotongan miring dengan penyesuaian otomatis dan kemampuan pengulangan yang tinggi. Pengoperasian yang mudah digunakan, dan kemampuan untuk berintegrasi dengan mulus ke dalam jalur produksi.


Automatic Mitre Circular Saw PSU 450 M

Whether for industrial manufacturing or fabrication projects, this machine enhances productivity and versatility, making it an ideal choice for demanding cutting applications. Streamline your operations and achieve flawless results with the Automatic Mitre PSU 450 M.

Automatic mitre circular saw PSU 450 M

Automatic Mitre Adjustment 30° to 150°

Achieve precision and versatility effortlessly with our Automatic Mitre Adjustment feature, spanning from 30° to 150°. This cutting-edge capability eliminates manual adjustments, allowing seamless transitions between various cutting angles.

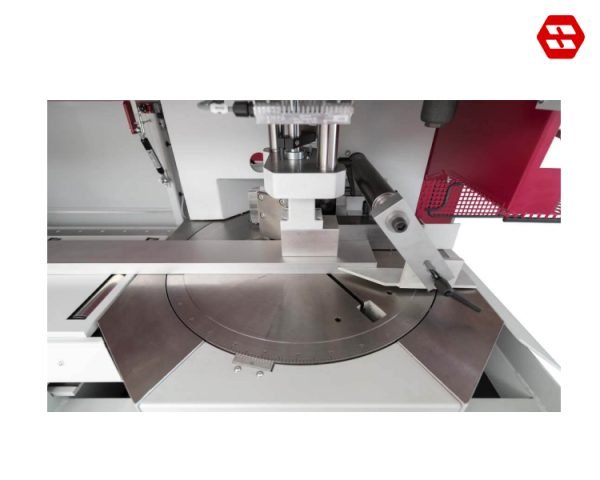

Automatic mitre adjustment 30° to 150°

Servo-Driven Feeding Gripper

Enhance precision and efficiency in your metalworking processes with our Servo-Driven Feeding Gripper.With its servo-driven mechanism, it offers superior accuracy and reliability, allowing for consistent performance in demanding manufacturing environments.

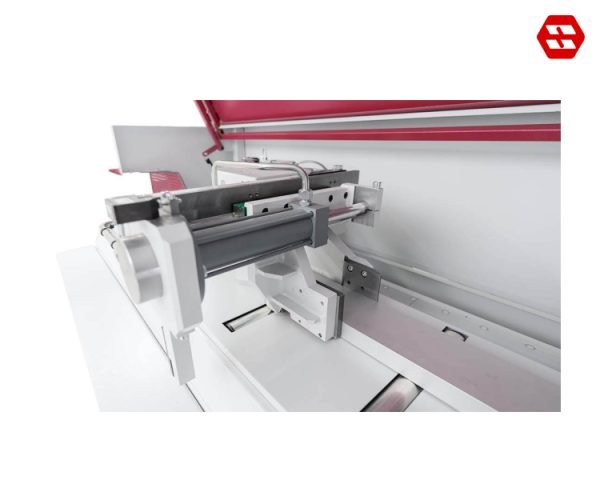

Servo-driven feeding gripper

Powerful Control

Experience unparalleled command over your metalworking processes with our Powerful Control system. With its intuitive interface and robust capabilities, our control system empowers operators to optimize performance and achieve superior results with ease.

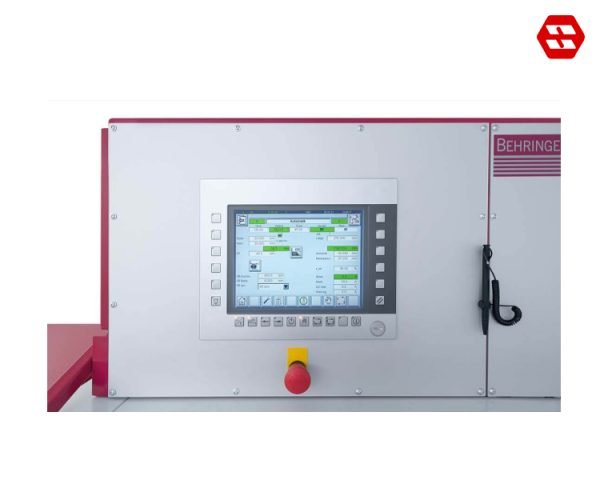

Powerful control

Features of The Mitre Circular Saw PSU 450 M

Micro Spray System.

When sawing profiles, pipes and solid material, the standard minimum quantity lubrication system delivers the best results. The saw blade is constantly moistened with cutting oil via a nozzle.

Robust and Durable.

The heart of the PSU saw units is a worm gear unit with EISELE shock-absorbing feature, produced in-house. The robust design of the gearbox consistently dampens vibrations.

Optimum Chip Flow.

Also when sawing tubes and hollow profiles due to the saw feed from bottom up.

High Cutting Quality.

Workpiece clamping on both sides of the saw blade ensures a clean cutting surface and low tolerances.

Extensive Range of Materials.

The mitre circular saws of the PSU series cover an extensive range of materials such as flat, angular and solid material, pipes and special profiles.

Simple,Intuitive Control.

Everything in view. Everything under control. The control system is self-explanatory, simple, avoids operating errors and allows quick navigation in the various programmes.

Short Cycle Times.

by electronic cutting height adjustment and rapid return of the saw blade.

Sturdy Machine Base.

The heavy machine stand and the vibration-damping cast iron components made by BEHRINGER ensure a low-vibration sawing process and thus an increase in tool life.

Reduced Material Consumption.

Alternating sawing eliminates the need for gussets on sections with the same angle. This saves material and increases productivity.

Servo Axes.

for precise and fast length positioning of the starting material and mitre angle adjustment.

Technical Data Mitre Circular Saw PSU 450 M

Cutting Range
Flat 90°240 x 70 mm
Flat 45°180 x 50 mm
Flat 30°130 x 30 mm
Square 90°140 x 140 mm
Square 45°125 x 125 mm
Square 30°100 x 100 mm
Round 90°150 mm
Round 45°145 mm
Round 30°112 mm
Smallest dimension to be sawn round10 mm
Smallest dimension to be sawn flat10 x 10 mm
Performance Characteristics
Drive power3.0 / 3.6 kW
RPM standard6 / 12 / 24 / 48 min-1
RPM optional12 / 24 / 48 / 96 min-1
Saw blade diameter450 mm
Feeding length single stroke1,500 mm
Feed rate667 mm/s
Saw feedhydraulic
Material clampinghydraulic
Dimensions and Weight
Length3,100 mm
Width1,500 mm
Height1,950 mm
Weight2,300 kg
Material support height1,020 mm
