Description
Automatic Bandsaw SLB240A
The SLB240A from BEHRINGER is a fully automatic bandsaw designed for easy operation and maximum reliability. It is ideally suited for single and serial cuts of pipes, profiles and solid materials made of metal and comparable plastics. At the same time, it impresses with its precision and smooth running.Simple operation and precise serial cuts for professional use
Saw Band Tensioning
The saw band is tensioned manually. The setting of the correct tensioning force is displayed optically. In order to prevent overloading during the sawing process, the pressure is equalized by means of a pretensioned disc spring package. In the event of a band break, the sawing machine switches off automatically.
Hydraulic Saw Feed
The saw feed is hydraulically controlled with an infinitely adjustable feed rate. The lifting and lowering of the saw frame is controlled by push buttons.

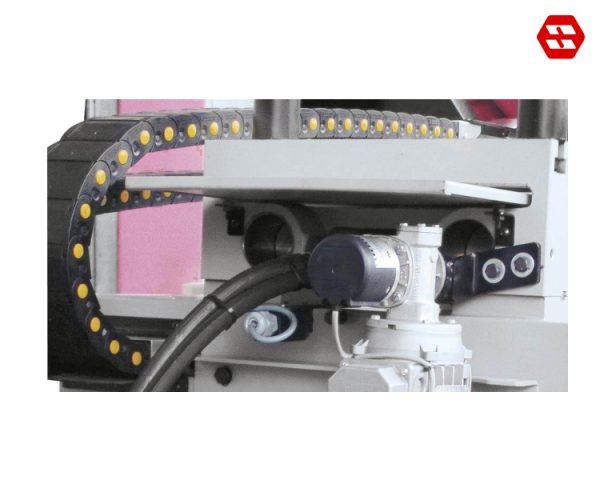

Automatic Material Feed
A hydraulically operated feeding gripper positions the material for series cuts. The cutting length is set using a stop that is positioned by an electrically driven spindle. Feed length and number of cuts can be programmed in the control.
Control Panel
The Control Panel, an intuitive interface designed to streamline operation and control of industrial machinery, ensuring efficient performance and ease of use.
Features of The Automatic Bandsaw SLB240A
Robust Material Vice With Quick-Clamping Device.
The material is clamped by a robust vice with a hydraulic quick-clamping device. The vice is adjusted to the material width using a handwheel.
NC Program Control.
Modern programmable logic controller with clear masks on the LCD display for simple and safe manual and automatic operation.
Saw Band Tensioning.
The saw band is tensioned manually. The setting of the correct tensioning force is displayed optically.
Frequency-Controlled Saw Drive.
Offers maximum flexibility when sawing different material grades such as stainless steel or aluminum.
Precise Band Guides.
Combination of roller and carbide guide of the saw band. Adjustment of the movable band guide according to the cutting width.
Hydraulic Saw Feed.
The saw feed is hydraulically controlled with an infinitely adjustable feed rate. The lifting and lowering of the saw frame is controlled by push buttons.
Coolant System.
The machine is equipped with 2 regulated coolant nozzles. The coolant tank can be removed for easy cleaning.
Technical Data Automatic Bandsaw SLB240A
| Cutting Range | |
| Cutting range 90° round | 260 mm |
| Cutting range 90° flat | 270 x 260 mm |
| Smallest dimension to be sawn round | 10 mm |
| Smallest dimension to be sawn flat | 10 x 10 mm |
| Performance Characteristics | |
| Feeding length single stroke | 510 mm |
| Drive power | 1.5 kW |
| Blade speed | 16 – 120 m/min |
| Saw blade dimensions | 3,300 x 27 x 0.9 mm |
| Rest piece length in automatic mode | 80 mm |
| Shortes cutting length | 10 mm |
| Saw feed | hydraulic |
| Material feed | hydraulic |
| Dimensions and Weight | |
| Length | 1,700 mm |
| Width | 1,800 mm |
| Height | 1,700 mm |
| Weight | 950 kg |
| Material support height | 850 mm |
