Description
HBE511A Dynamic
The BEHRINGER HBE511A Dynamic automatic bandsaw is engineered for cost-effective operation within the industrial and steel trade sectors. It delivers precision cuts with minimal deviations across a diverse range of materials, spanning from easy-to-machine metals to challenging plastics. This versatility enables efficient processing of profiles, tubes, and solid materials.

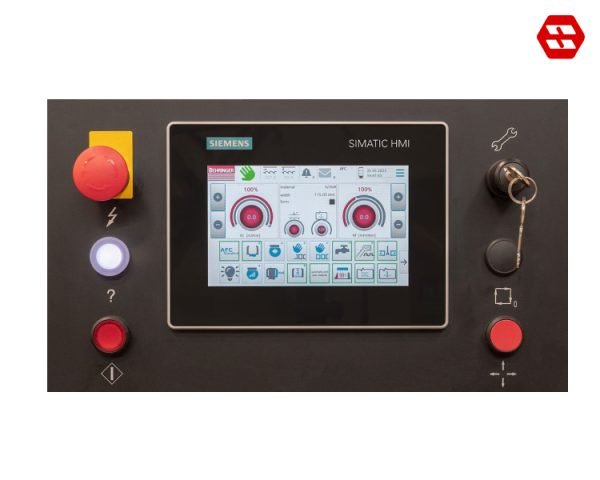

Intuitive BehrCtrl10 Touch Control
Experience intuitive control: BehrCtrl10 touchscreen

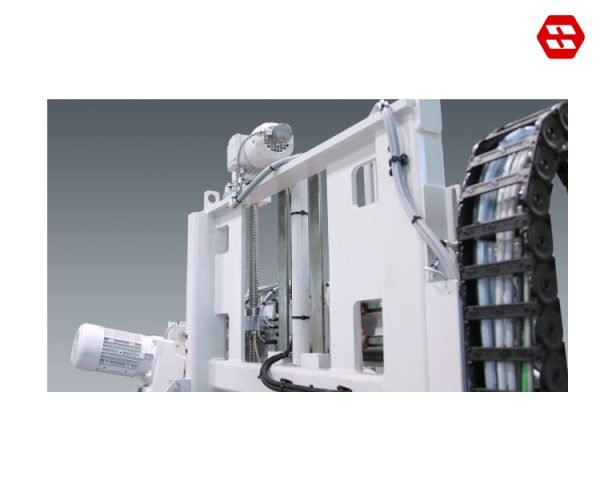

Servo-Downfeed With Cutting Pressure Control.
This advanced technology allows for automatic adjustment of the cutting pressure applied to the material being cut, ensuring optimal performance while minimizing waste and maximizing blade life.

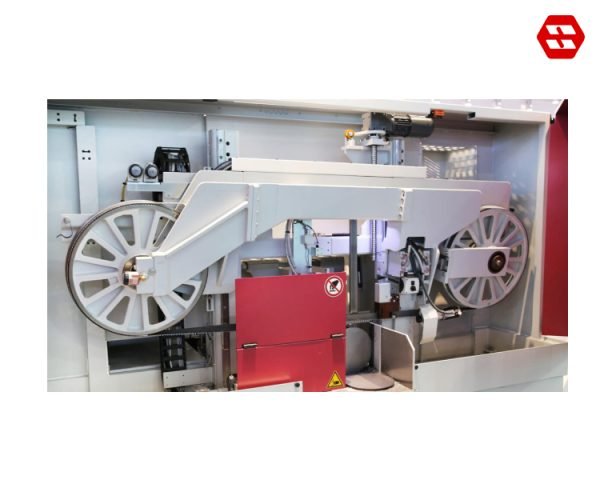

Stable Cast Iron Saw Frame.
The stable cast iron saw frame is a cornerstone of reliability and durability in industrial cutting machinery. Crafted from robust cast iron, this frame provides a solid foundation for precise and efficient cutting operations.

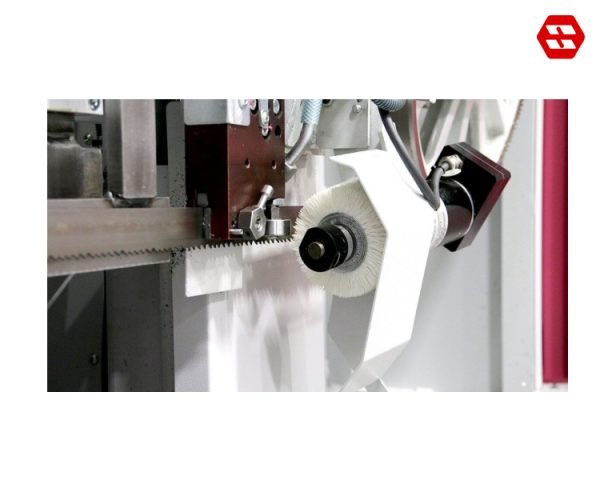

Electrically Driven Chip Brush
With BEHRINGER quick-change device for tool-free brush changes. The teeth of the saw band are protected by the special engagement angle.
Features of The Horizontal Bandsaw HBE511A Dynamic
Precision Portal-Design Guide System.
The combination of stable, low-vibration saw frame and the linear guide system in portal design ensure the best band sawing results and maximum service life.
Servo Downfeed System.
The saw feed is carried out by means of a ball screw and servo motor. This results in significantly shorter idle times and more precise saw feeds.
Auto-Feed-Control.
Selection of the material in an extensive material database. The AFC automatically calculates the optimal values for saw feed and cutting speed.
Energy Efficient.
The use of modern drives and a special hydraulic system reduces energy consumption by approx. 30% compared to the previous model.
Automatic Guide Arm.
Optimum sawing result without any adjustments - even with frequently changing material sizes.
Cast Iron Band Guiding Parts.
Are made by BEHRINGER and provide vibration damping directly at the cutting edge, thus increasing tool life.
Easy to Use.
Quick and easy operation of all functions of the automatic band saw via touch control.
Double Clamping Vice.
Offers process reliability - especially when sawing bundles or making single cuts.
Technical Data Horizontal Bandsaw HBE511A Dynamic
| Cutting Range | |
| Cutting range 90° round | 510 mm |
| Cutting range 90° flat | 510 x 510 mm |
| Smallest dimension to be sawn round | 10 mm |
| Smallest dimension to be sawn flat | 10 x 8 mm |
| Performance Characteristics | |
| Feeding length single stroke | 650 mm |
| Drive power | 5.2 kW |
| Saw blade dimensions | 5,730 x 41 x 1.3 mm |
| Rest piece length in automatic operation | 80 mm |
| Total power | 6.5 kW |
| Saw feed | servo-feed via ball screw |
| Material feed | ball screw |
| Material clamping | hydraulic |
| Saw blade cleaning | ectrically driven chip brush |
| Dimensions and Weight | |
| Length | 2,000 mm |
| Width | 2,850 mm |
| Height | 2,220 mm |
| Weight | 3,500 kg |
| Material support height | 800 mm |
