Bandsaw Machine HBE411A Dynamic BEHRINGER

Mesin ini dirancang untuk pemotongan presisi dengan fitur-fitur canggih. Desainnya yang dinamis dan kemampuan performa tinggi memberikan hasil pemotongan yang konsisten dan berkualitas tinggi. Dengan efisiensi dan keserbagunaannya, mesin ini dapat menangani berbagai material dengan akurat. Mesin ini cocok untuk lingkungan manufaktur yang bertujuan untuk mengoptimalkan produktivitas dan mencapai pemotongan presisi secara konsisten.


HBE411A Dynamic

The BEHRINGER HBE411A Dynamic automatic bandsaw is engineered for cost-efficient operation in both the industrial sector and steel trade. It delivers high-quality cuts with minimal deviation across a variety of materials, from straightforward to challenging metals and plastics.

HBE411A Dynamic 1

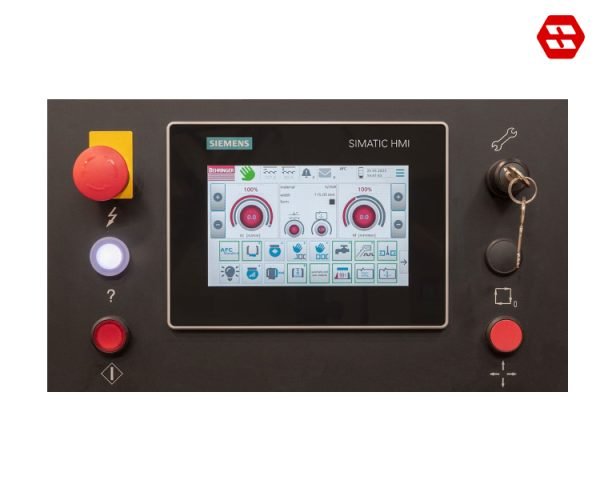

Intuitive BehrCtrl10 Touch Control

Experience intuitive control: BehrCtrl10 touchscreen

Intuitive BehrCtrl10 touch control 1

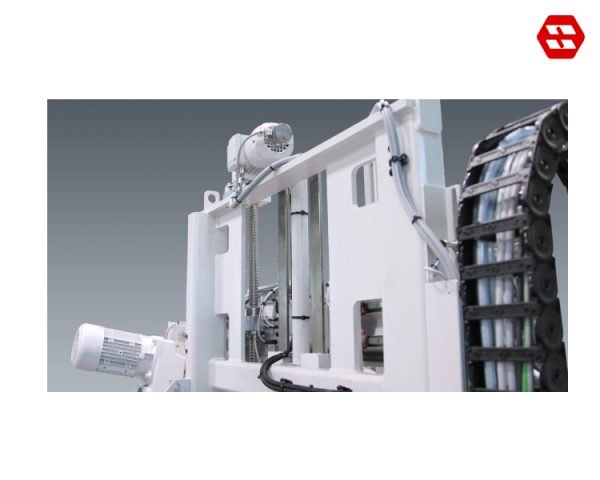

Servo-Downfeed With Cutting Pressure Control.

This advanced technology allows for automatic adjustment of the cutting pressure applied to the material being cut, ensuring optimal performance while minimizing waste and maximizing blade life.

Cast iron band guiding parts

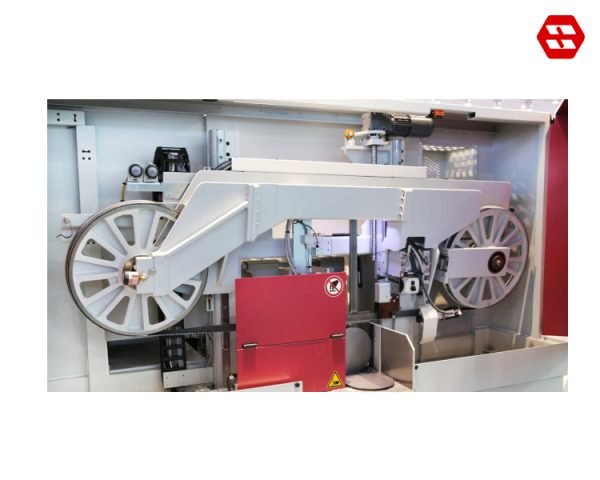

Stable Cast Iron Saw Frame.

The stable cast iron saw frame is a cornerstone of reliability and durability in industrial cutting machinery. Crafted from robust cast iron, this frame provides a solid foundation for precise and efficient cutting operations.

Stable cast iron saw frame 1

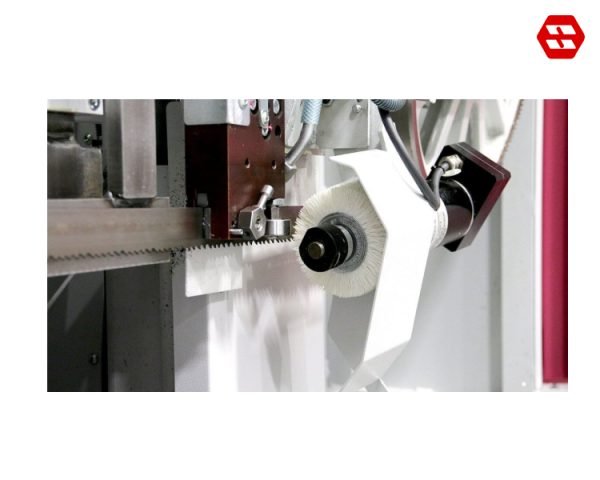

Electrically Driven Chip Brush

With BEHRINGER quick-change device for tool-free brush changes. The teeth of the saw band are protected by the special engagement angle.

Electrically driven chip brush

Features of The Production Bandsaw
HBE411A Performance

Precision Portal-Design Guide System.

The combination of stable, low-vibration saw frame and the linear guide system in portal design ensure the best band sawing results and maximum service life.

Servo Downfeed System.

The saw feed is carried out by means of a ball screw and servo motor. This results in significantly shorter idle times and more precise saw feeds.


Selection of the material in an extensive material database. The AFC automatically calculates the optimal values for saw feed and cutting speed.

Energy Efficient.

The use of modern drives and a special hydraulic system reduces energy consumption by approx. 30% compared to the previous model.

Easy to Use.

Quick and easy operation of all functions of the automatic band saw via touch control.

Double Clamping Vice.

Offers process reliability - especially when sawing bundles or making single cuts.

Automatic Guide Arm.

Optimum sawing result without any adjustments - even with frequently changing material sizes.

Cast Iron Band Guiding Parts.

Are made by BEHRINGER and provide vibration damping directly at the cutting edge, thus increasing tool life.

Technical Data Horizontal Bandsaw HBE411A Dynamic

Cutting Range
Cutting range 90° round410 mm
Cutting range 90° flat510 x 410 mm
Smallest dimension to be sawn round10 mm
Smallest dimension to be sawn flat10 x 8 mm
Performance Characteristics
Feeding length single stroke 650 mm
Drive power 3.8 kW
Blade speed 15 – 110 m/min
Saw blade dimensions 5,730 x 41 x 1.3 mm
Rest piece length in automatic operation 80 mm
Total power 5 kW
Saw feed servo-feed via ball scre
Material feed ball screw
Material clamping hydraulic
Saw blade cleaning electrically driven chip brush
Dimensions and weight
Length2,000 mm
Width2,850 mm
Height2,220 mm
Weight3,200 kg
Material support height800 mm
