HBE560A Performance
The HBE560A Performance industrial saw is engineered to meet the rigorous demands of steel trading, industrial, and metal production applications. Its sturdy build, employing advanced servo technology and precise guide systems, ensures efficient utilization of carbide and bi-metal saw blades.

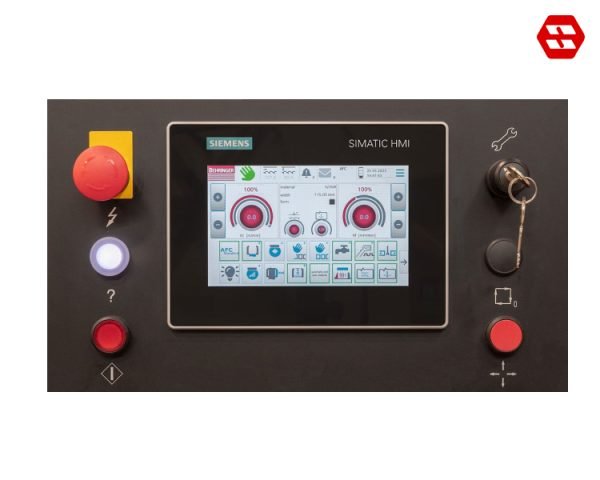

Intuitive BehrCtrl10 Touch Control
Experience intuitive control: BehrCtrl10 touchscreen

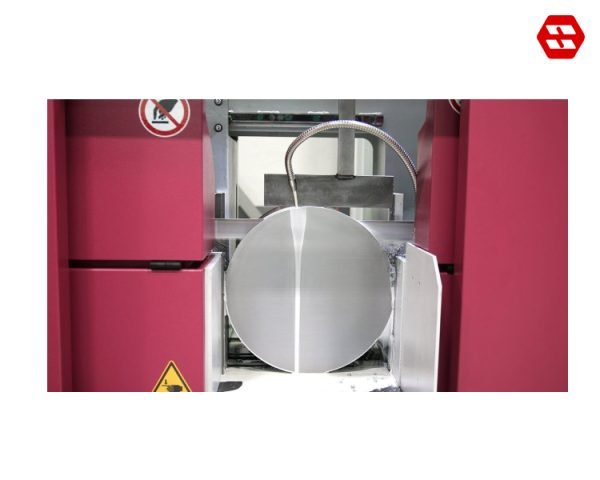

Highest Cutting Performance When Sawing With Bimetal and Carbide Saw Blades
Achieve peak cutting performance with bimetal and carbide saw blades.

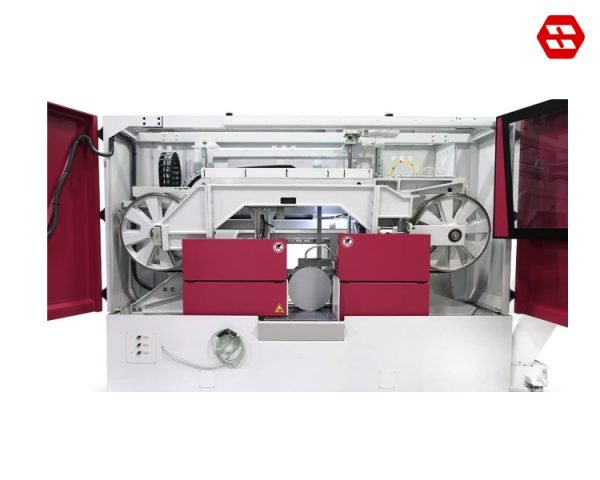

Cast Iron Band Guiding Parts
Are made by BEHRINGER and provide vibration damping directly at the cutting edge, thus increasing tool life.

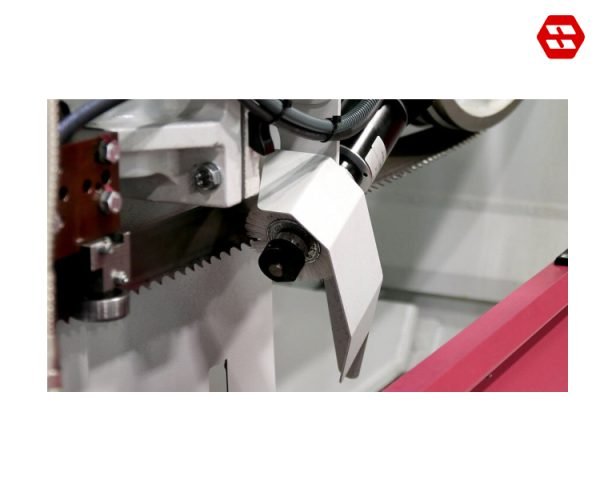

Electrically Driven Chip Brush
With BEHRINGER quick-change device for tool-free brush changes. The teeth of the saw band are protected by the special engagement angle.
Features of The Production Bandsaw HBE560A Performance
Sensitive BEHRINGER Cutting Pressure Control.
Increases the cutting performance when sawing tubes and profiles, as it automatically adapts the saw feed of the machine to the changing material cross-sections.
Servo Downfeed System.
The saw feed is carried out by means of a ball screw and servo motor. This results in significantly shorter idle times and more precise saw feeds.
Precision Portal-Design Guide System.
The combination of stable, low-vibration saw frame and the linear guide system in portal design ensure the best band sawing results and maximum service life.
Auto-Feed-Control.
Selection of the material in an extensive material database. The AFC automatically calculates the optimal values for saw feed and cutting speed.
Powerful Chip Conveyor.
Optimal chip disposal thanks to the funnel-shaped machine base and the paddle-style chip conveyor with an integrated coolant tank.
Economical Use of Carbide Saw Blades.
Due to robust design, use of latest servo technology and well dimensioned chip disposal.
Automatic Guide Arm.
Optimum sawing result without any adjustments - even with frequently changing material sizes.
Double Clamping Vice.
Offers process reliability - especially when sawing bundles or making single cuts.
Technical Data Production Bandsaw HBE560A Performance
| Cutting Range | |
| Cutting range 90° round | 560 mm |
| Cutting range 90° flat | 560 x 560 mm |
| Smallest dimension to be sawn round | 20 mm |
| Smallest dimension to be sawn flat | 20 x 20 mm |
| Performance Characteristics | |
| Feeding length single stroke | 500 mm |
| Drive power | 5.5 kW |
| Blade speed | 10 – 110 m/min |
| Saw blade dimensions | 7,800 x 54 x 1.6 mm |
| Rest piece length in automatic operation | 55 mm |
| Total power | 12 kW |
| Saw feed | servo-feed via ball screw |
| Material feed | ball screw |
| Material clamping | hydraulic |
| Saw blade cleaning | electrically driven chip brush |
| Dimensions and Weight | |
| Length | 2,250 mm |
| Width | 3,750 mm |
| Height | 2,650 mm |
| Weight | 5,100 kg |
| Material support height | 800 mm |
