Bandsaw Machine HBE261A Dynamic BEHRINGER

Mesin Gergaji Pita Dinamis ini solusi pemotongan berkinerja tinggi yang dirancang untuk presisi dan efisiensi. Dengan konstruksi kokoh dan fitur-fitur canggih, mesin gergaji pita ini memiliki kapasitas dan akurasi pemotongan yang luar biasa untuk berbagai material, mulai dari logam hingga plastik. HBE261A Dynamic dilengkapi dengan kontrol umpan dinamis dan sistem pengencangan blade yang canggih, memastikan kinerja pemotongan optimal dan umur blade yang panjang.


HBE261A Dynamic

The HBE261A Dynamic Bandsaw cuts various materials (metals, plastics) quickly and precisely, while saving energy and offering good safety features.

Intuitive BehrCtrl10 Touch Control

Experience intuitive control: BehrCtrl10 touchscreen

Intuitive BehrCtrl10 touch control 1

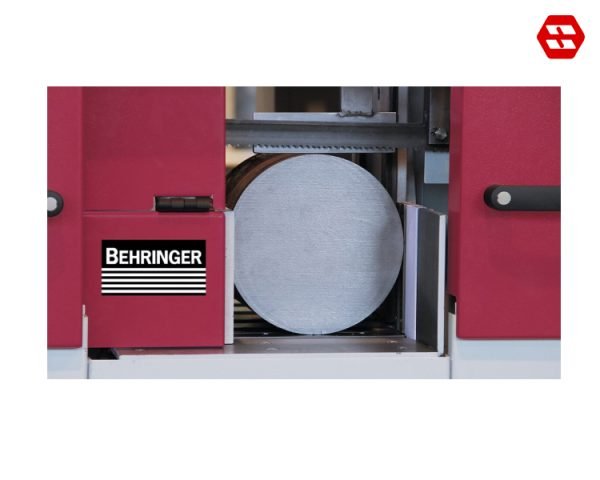

Cast Iron Band Guiding Parts

Are made by BEHRINGER and provide vibration damping directly at the cutting edge, thus increasing tool life.

Cast iron band guiding parts

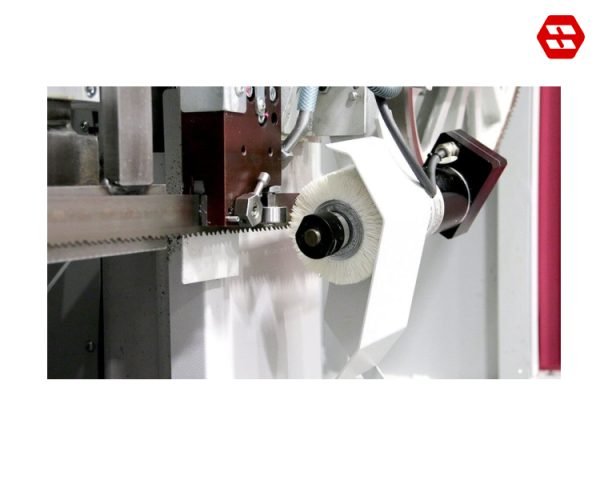

Electrically Driven Chip Brush

With BEHRINGER quick-change device for tool-free brush changes. The teeth of the saw band are protected by the special engagement angle.

Electrically driven chip brush
Precision Portal-Design Guide System.

The combination of stable, low-vibration saw frame and the linear guide system in portal design ensure the best band sawing results and maximum service life.

Energy efficient.

The use of modern drives and a special hydraulic system reduces energy consumption by approx. 30% compared to the previous model.

Sensitive BEHRINGER Cutting Pressure Control.

Increases the cutting performance when sawing tubes and profiles, as it automatically adapts the saw feed of the machine to the changing material cross-sections

Automatic Guide Arm.

Optimum sawing result without any adjustments - even with frequently changing material sizes.

Easy to use.

Quick and easy operation of all functions of the automatic band saw via touch control.

Technical Data Horizontal Bandsaw HBE261A Dynamic

Cutting Range
Cutting range 90° round260 mm
Cutting range 90° flat300 x 260 mm
Smallest dimension to be sawn round10 mm
Smallest dimension to be sawn flat10 x 8 mm
Performance Characteristics
Feeding length single stroke650 mm
Drive power2.6 kW
Blade speed15 – 110 m/min
Saw blade dimensions4,440 x 34 x 1.1 mm
Rest piece length in automatic operation70 mm
Total power3.7 kW
Saw feedhydraulic
Material feedball screw
Material clampinghydraulic
Saw blade cleaningelectrically driven chip brush
Dimensions and weight
Length 1,850 mm
Width 2,300 mm
Height 1,820 mm
Weight 1,850 kg
Material support height 800 mm
