Circular Saw Machine Aluminium VA-L 560 NC3 BEHRINGER

Mesin gergaji bundar aluminium ini merupakan solusi pemotongan serbaguna dan efisien yang dirancang khusus untuk bahan aluminium. Dilengkapi teknologi NC3, alat berat ini untuk pemotongan yang akurat dan berulang. Konstruksinya yang kokoh memastikan stabilitas dan daya tahan, Desain canggihnya memungkinkan pemotongan berkecepatan tinggi dengan limbah minimal.


Aluminium Circular Saw VA-L 560 NC3

Designed for aluminum processing, The VA-L 560 NC3 delivers exceptional performance in industrial environments. Elevate your aluminum cutting operations with the precision and versatility of the VA-L 560 NC3 Circular Saw Machine.for cutting aluminium and non-ferrous metals

Aluminium circular saw VA-L 560 NC3

Excellent Accessibility

Experience unparalleled accessibility with the Circular Saw Machine Aluminium VA-L 500 E by BEHRINGER. Designed with user convenience in mind, this machine features excellent accessibility, allowing for effortless maintenance and operation.

Excellent accessibility 1

Feeding Gripper With Lift and Shift Device

Harness unprecedented precision and efficiency with the Powerful Control System of the Circular Saw Machine High Speed HCS 100 MF by BEHRINGER. Engineered to provide comprehensive command over cutting operations, this advanced system allows for intricate adjustments and real-time monitoring, ensuring optimal performance.

Feeding gripper with lift and shift device 1

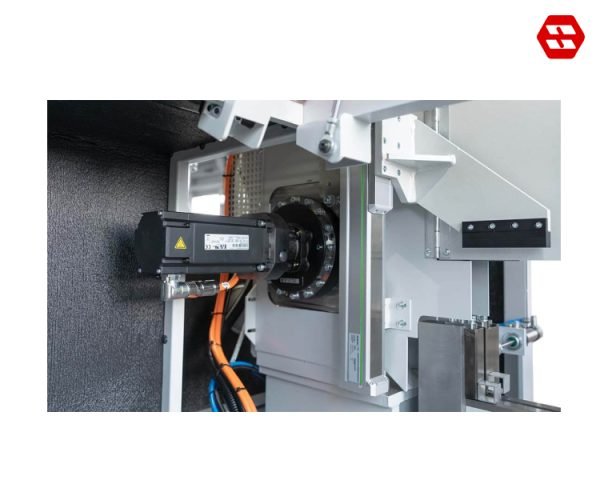

Saw Feed With Servo Rocker Arm

Optimize cutting precision and efficiency with our Circular Saw Machine Aluminium VA-L 560 NC3 by BEHRINGER, featuring a Saw Feed with Servo Rocker Arm. This innovative system ensures smooth and accurate material feed, enhancing cutting quality and productivity.

Saw feed with servo rocker arm

Intuitive Control System of The Aluminium Saw

Ensures perfect chip flow into the chip conveyor as well as the speedy disposal of chips and cooling liquids. Cleaning is extremely easy.

Intuitive control system of the aluminium saw

Automatic Widening of Kerf Channel

Allows clear return travel of the saw blade by pressing back the material and the offcut on both sides. The effect: increased service life of tools and elimination of scratching on the cut surface during blade retraction.

Automatic widening of kerf channel

Features of The Aluminium Circular Saw VA-L 560 NC3

Servo-Driven Material Clamping.

Clamping force and clamping travel can be set precisely. This ensures particularly safe and surface-protecting clamping and high repeatability in the fully automated process.

Highest Level of Safety.

The unique machine concept prioritizes occupational safety and ergonomic design. The VA-L is 100% encapsulated as standard.

Chip Extraction.

The basic design of the VA-L aluminium saw is optimised for the connection of extraction systems.

High Output.

Due to a powerful drive and optimised material flow.

Material Feed System With Lift and Shift Device.

The NC axis with ball screw and servo drive in conjunction with lift and shift device guarantees extreme positioning accuracy and helps ensure gentle material handling.

Good Accessibility.

The housing of the circular saw can be opened up to expose large areas of the machine. All the important components and parts are easily accessible.

Short Remnant Length.

of only 50 mm in automatic operation saves expensive material.

Excellent Surface Quality.

The Aluminium Circular Saw provides an optimum, low-vibration cutting process. The workpieces can be transferred to the next operations without or almost post-processing.

Automatic Widening of Kerf Channel.

Allows clear return travel of the saw blade by pressing back the material and the offcut on both sides.

Careful Material Handling.

Damage to the material surface is avoided by the special design of the material handling systems.

Technical Data Aluminium Circular Saw VA-L 560 NC3

Cutting Range
Cutting range 90° round10 – 200 mm
Cutting range 90° square290 x 165 mm
Cutting range 90° square170 x 170 mm
Smallest dimension to be sawn round10 mm
Smallest dimension to be sawn square10 x 10 mm
Performance Characteristics
Drive power26 kW
RPM800 – 3,400 min-1
Saw blade diameter500 – 560 mm
Feeding length single stroke1,000 mm
Feed rate0 – 2,000 mm/s
Saw feedservo-driven
Material clampingservo-driven
Dimensions and Weight
Length2,140 mm
Width2,010 mm
Height2,016 mm
Weight2,400 kg
Material support height925  mm
