Description
Manual Bandsaw Machine PH 262-MEP
PH 262, manual pull-down band sawing machine to cut metals mitering from -45° to +60°, also available in the HB version to perform, in addition to manual cutting, even single cuts without operator.
Cast Iron Structure
Cast-iron structure of the saw head, cutting table and vice to absorb vibration during the cut and ensure longer blade life.
Hard Metal Blade-Guide Pads
Adjustable and extremely wear-resistant hard metal blade-guide pads that ensure longer blade life and cuttting stability

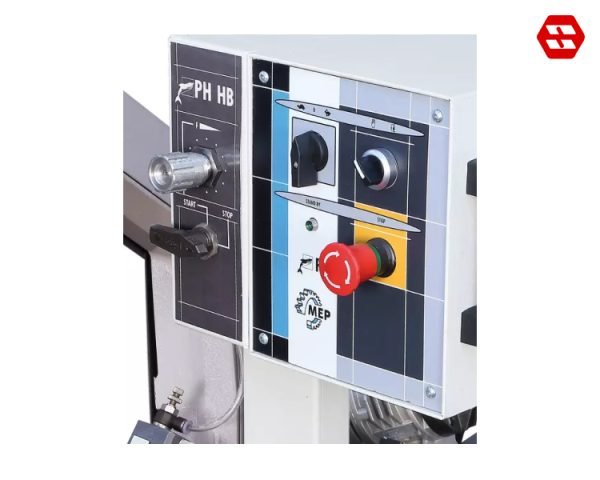

Optional HB-System
Saw head down feed rate by gravity through the HB system by which the cut is executed in automatic mode, once the operator starts the cycle.
Technical Data Manual Bandsaw Machine
PH 262-MEP
CUTTING RANGE
 |  | | |
| 0° | 225 mm | 200 mm | 240 x 160 mm |
| +45° | 160 mm | 140 mm | 155 x 115 mm |
| +60° | 90 mm | 90 mm | 90 x 90 mm |
| – 45° | 145 mm | 125 mm | 150 x 100 mm |
PERFORMANCE CHARACTERISTICS
| Max. vice opening | 245 mm |
| Band size | 2450 x 27 x 0.9 mm |
| Blade motor power | 0.7 / 0.81 Kw – Three-phase |
| Blade rotation speed | 46 / 92 m/min – 2 Speeds |
