Automatic Bandsaw Machine SHARK 332 RC KONNECT MEP

Merupakan mesin gergaji pita otomatis yang dirancang untuk pemotongan logam yang efisien dan presisi. Dengan sistem RC KONNECT yang inovatif dan konstruksi yang kokoh, alat berat ini menawarkan pengoperasian otomatis dengan kinerja yang andal. Fitur-fiturnya yang canggih memudahkan integrasi ke dalam alur kerja industri modern. Memberikan kualitas pemotongan dan produktivitas yang konsisten, menjadikannya pilihan ynag terbaik.

Description

SHARK 332 RC KONNECT

SHARK 332 RC KONNECT, automatic electromechanical pivot band sawing machine with controlled automatic rotation to cut iron tubes, profiles and beams from -60° to +60°. In addition to the automatic operating cycle, it can also operate in semi-automatic mode.

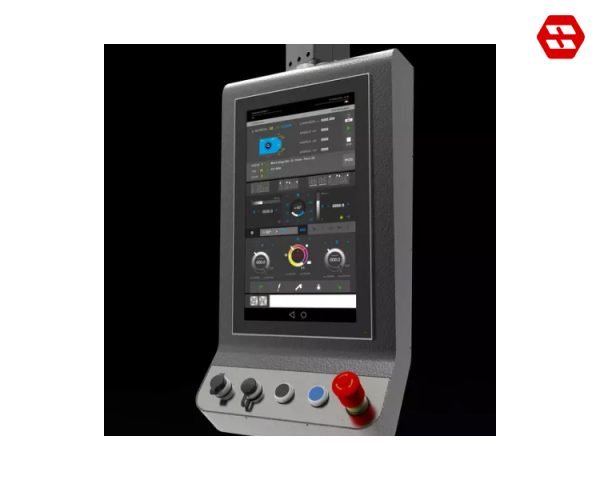

Konnect Control

Panel PC control, Quad core 2.0Ghz, 8-GB Ram, WINDOWS 10 and 17-inch touchscreen display with user-friendly graphic interface, which supports the operator during setting up, optimization and processing of various jobs.

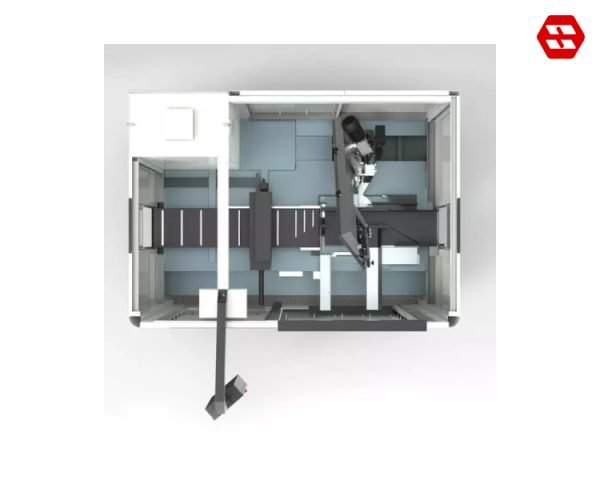

High Safety

"Saw in the box" style that ensures maximum operator's safety, while maintaining excellent visibility and accessibility of all working areas.

Industry 4.0 Ready-IOT

The optional IOT allows to maximize data collection and use them in favor of a better sawing machine cutting performance and longer blade life.

Technical Data Bandsaw Machine Semi Automatic
SHARK 332 RC KONNECT MEP

CUTTING RANGE


0°	310 mm	300 mm	330 x 300 mm	230 x 310 mm
+ 45°	250 mm	230 mm	250 x 130 mm	220 x 300 mm
+ 60°	160 mm	155 mm	160 x 80 mm	140 x 290 mm
– 45°	200 mm	180 mm	200 x 160 mm	130 x 280 mm
– 60°	130 mm	110 mm	140 x 80 mm	40 x 250 mm
