Description
SHARK 230-1 NC HS 5.0
SHARK 230-1 NC HS 5.0, dual-column electrohydraulic automatic band sawing machine for 0° cuts of structural, stainless and alloy steels, solids and profiles. In addition to the automatic cycle.The automatic dual-column band sawing machine with a footprint of 2.5 sqm only: the winning combination between maximum performance and minimum space!
Adaptive Saw Head Down Feed Rate
Self-regulation in real-time of head down feed rate according to the type of material or blade wear.

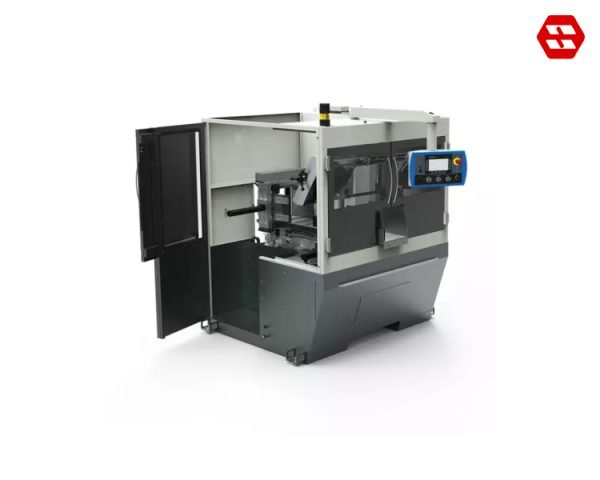

Hihg Safety
"Saw in the box" style that ensures maximum operator's safety according to the EC regulation and safety interlocks in accordance with the UNI 14119 regulation.
Industry 4.0 Ready-IOT
The optional IOT allows to maximize data collection and use them in favor of a better sawing machine cutting performance and longer blade life.

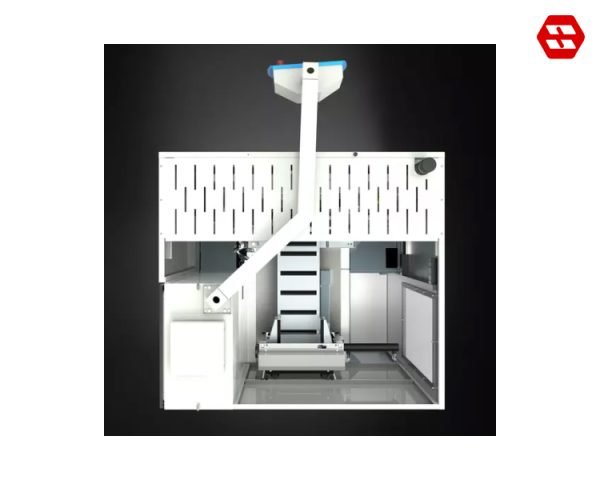

Optimized Footprint
Great compactness thanks to a footprint of 2.5 sqm only.
Technical Data Bandsaw Machine Semi Automatic
SHARK 230-1 NC HS 5.0 MEP
CUTTING RANGE
 |  | |
| 0° | 230 mm | 230 mm |
PERFORMANCE CHARACTERISTICS
| Max. vice opening | 235 mm |
| Minimum cutting length | 10 mm |
| Rest piece no longer feeded | 85 mm |
| Band size | 2950 x 27 x 0.9 mm |
| Blade motor power | 2.2 Kw – Three-phase |
| Blade rotation speed | 15 ÷ 100 m/min |
