Description
SHARK 350 NC HS 5.0
SHARK 350 NC HS 5.0, dual-column electrohydraulic automatic band sawing machine for 0° cuts of structural, stainless and alloy steels, solids and profiles. In addition to the automatic cutting cycle, it can also operate in semi-automatic mode. The unbeatable dual-column automatic sawing machine in terms of speed and cutting accuracy
Cast-Iron Structure
Cast-iron structure to absorb vibrations and ensure greater cutting stability and longer blade life.

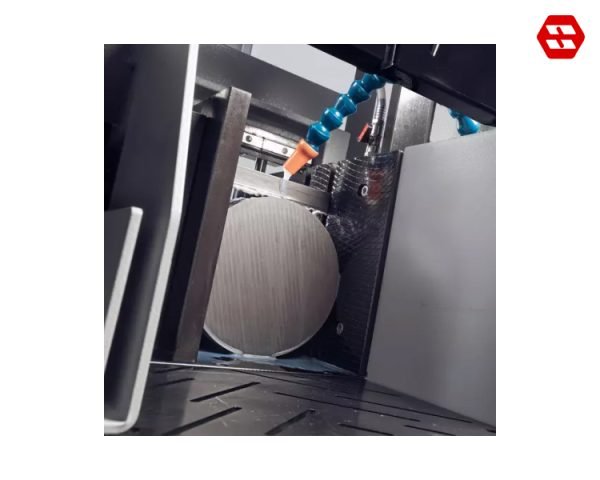

Adaptive Saw Head Down Feed Rate
Self-regulation in real-time of head down feed rate according to the type of material or blade wear.

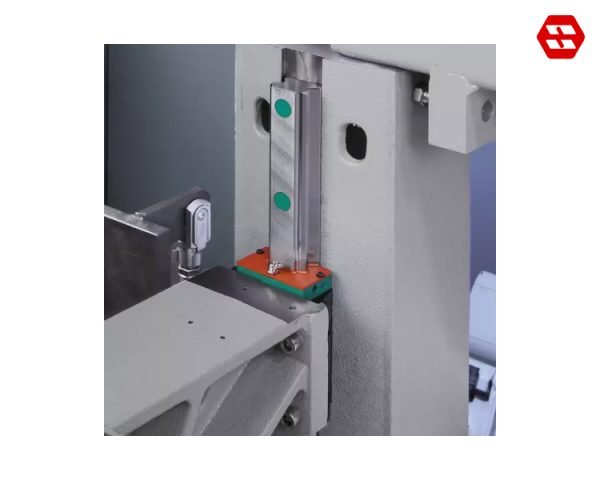

Motion of The Saw Head on Linear Guides With Preloaded Ball Screw Slides
Motion of the saw head on linear guides with preloaded ball screw slides that ensures a mechanical vibration reduction during the cut and greater cutting stability.
Industry 4.0 Ready-IOT
The optional IOT allows to maximize data collection and use them in favor of a better sawing machine cutting performance and longer blade life.

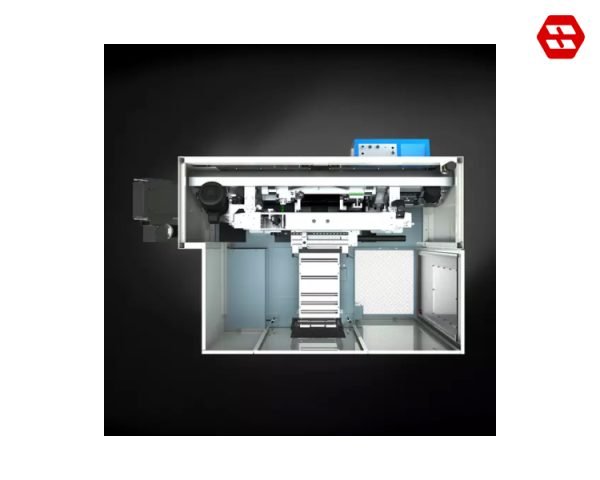

Hihg Safety
"Saw in the box" style that ensures maximum operator's safety according to the EC regulation and safety interlocks in accordance with the UNI 14119 regulation.
Technical Data Bandsaw Machine Semi Automatic
SHARK 350 NC HS 5.0 MEP
CUTTING RANGE
 |  | |
| 0° | 350 mm | 350 mm |
PERFORMANCE CHARACTERISTICS
| Max. vice opening | 355 mm |
| Minimum cutting length | 10 mm |
| Rest piece no longer feeded | 130 mm |
| Band size | 4640 x 34 x 1.1 mm |
| Blade motor power | 4.0 Kw – Three-phase |
| Blade rotation speed | 15 ÷ 100 m/min |
| Inverter power | 5.5 Kw |
