Bandsaw Machine Metal Cutting HBE320-523 BEHRINGER

Mesin ini dirancang untuk pemotongan logam yang presisi dan efisien. Dengan konstruksi yang kokoh dan kemampuan pemotongan yang canggih, alat berat ini menangani berbagai material logam dengan akurat. Fitur-fiturnya memastikan operasi pemotongan yang mulus dan konsisten, sehingga cocok untuk industri. Pilihan yang dapat diandalkan untuk lingkungan manufaktur yang mencari potongan logam berkualitas tinggi dan konsisten.


Metal Cutting HBE320-523

The horizontal bandsaw HBE320-523 perfectly combines the advantages of modern high-performance machines for individual sawing tasks with proven, unique BEHRINGER features. With its extensive range of applications, the band saw reliably covers all the requirements of small and medium-sized workshops.

Metal cutting bandsaw HBE320-523 1

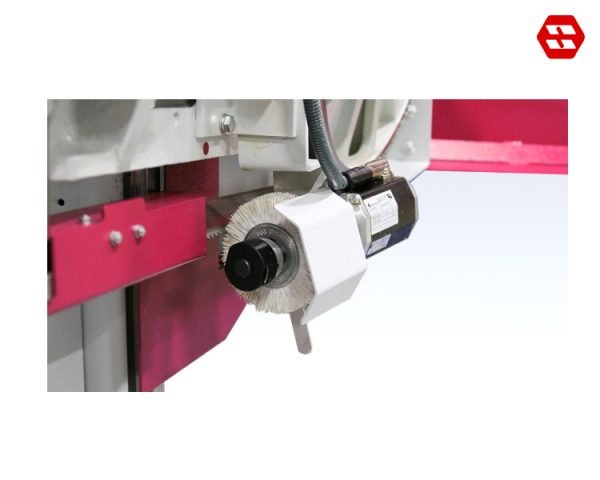

Electrically Driven Chip Brush

With BEHRINGER quick-change device for tool-free brush changes. The teeth of the saw band are protected by the special engagement angle.

Electrically driven chip brush 9

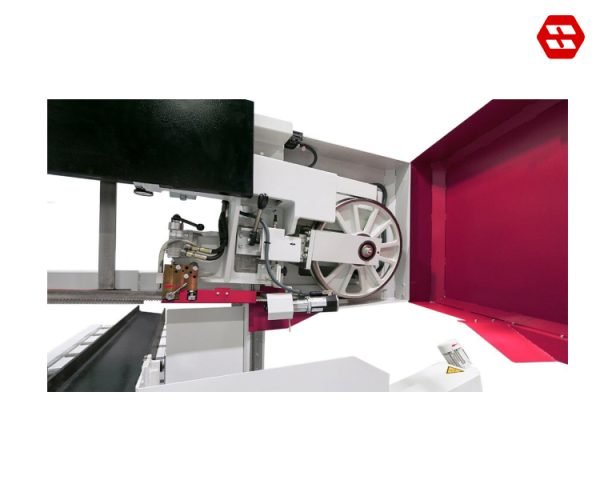

Cast Iron Band Guiding Parts

Are made by BEHRINGER and provide vibration damping directly at the cutting edge, thus increasing tool life.

Cast iron band guiding parts 7

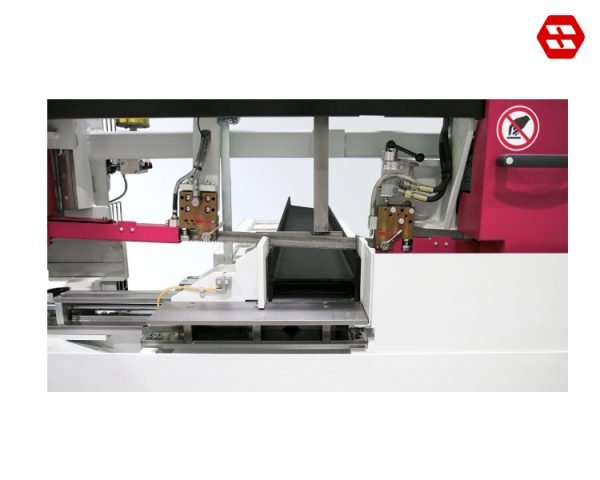

Double Clamping Vice of The Horizontal Bandsaw

is ideal for clamping single cuts. The clamping jaws are arranged on both sides of the saw band. When setting up, the material can simply be aligned with the blade.

Double clamping vice of the horizontal bandsaw 1

Features of The Metal Cutting Bandsaw HBE320-523

Sensitive BEHRINGER Cutting Pressure Control.

Increases the cutting performance when sawing tubes and profiles, as it automatically adapts the saw feed of the machine to the changing material cross-sections.

Precision Portal-Design Guide System.

The combination of stable, low-vibration saw frame and the linear guide system in portal design ensure the best band sawing results and maximum service life.

Energy Efficient.

The use of modern drives and a special hydraulic system reduces energy consumption by approx. 30% compared to the previous model.

Automatic Guide Arm.

Optimum sawing result without any adjustments - even with frequently changing material sizes.

Technical Data Metal Cutting Bandsaw

Cutting Range
Cutting range 90° round320 mm
Cutting range 90° flat520 x 320 mm
Smallest dimension to be sawn round10 mm
Smallest dimension to be sawn flat10 x 8 mm
Performance Characteristics
Drive power2.6 kW
Blade speed15 – 110 m/min
Saw blade dimensions5,300 x 34 x 1.1 mm
Rest piece length40 mm
Total power3.7kW
Dimensions and Weight
Length1,150 mm
Width2,750 mm
Height2,150 mm
Weight1,600 kg
Material support height800 mm
