Bandsaw Machine HBM440ALU Performance Automatic BEHRINGER

Mesin ini dikhususkan untuk memotong aluminium dan material non-ferrous lainnya dengan presisi dan efisiensi. Dilengkapi fitur otomatisasi canggih, mesin ini memudahkan proses pemotongan untuk hasil yang konsisten dan berkualitas tinggi. Konstruksinya yang kokoh dan desain yang disesuaikan membuatnya cocok untuk industri yang memerlukan pemotongan presisi pada aluminium dan logam non-besi.


HBM440ALU Performance Automatic

The HBM440ALU aluminum bandsaw is tailored for cutting ingots and billets crafted from aluminum or similar non-ferrous metals like magnesium.

Aluminium bandsaw HBM440ALU

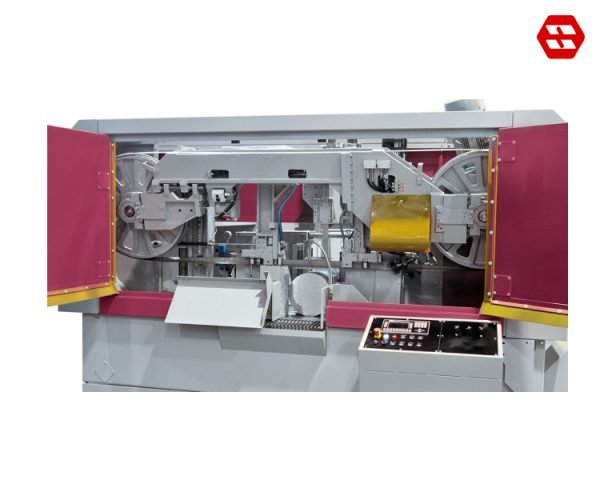

HBM High Performance Aluminium Sawing Unit

The HBM high-performance aluminum sawing unit delivers precision and efficiency in cutting aluminum and similar non-ferrous metals. Designed for swift and accurate cuts, it ensures optimal performance in aluminum ingots and billets processing.

HBM high performance aluminium sawing unit

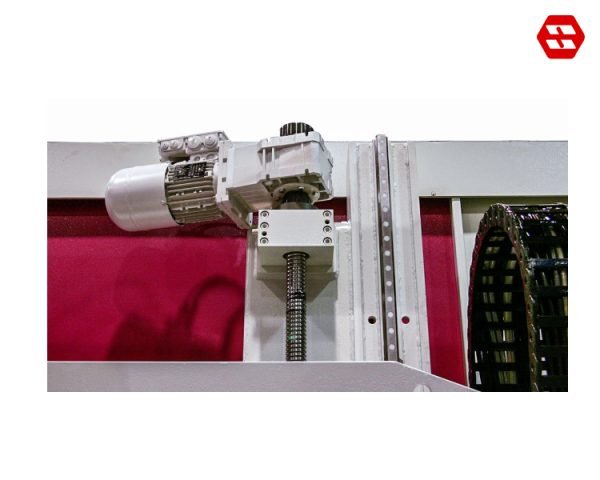

Servo Feed System For Short Non-Productive Times

The servo feed system minimizes downtime with swift, efficient transitions between cutting tasks.

Servo feed system for short non-productive times

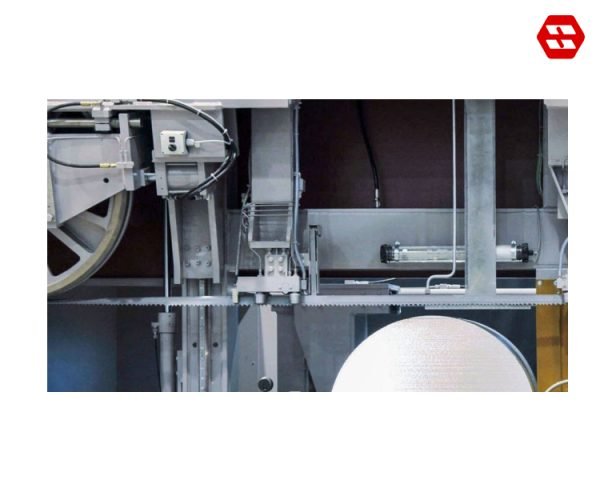

Roller Band Guides With Integrated Spray Lubrication

Ensure precise guidance of the saw band even at extremely high blade speeds. For a long service life, the bearings of the rollers are centrally lubricated by an automatic lubrication system.

Roller band guides with integrated spray lubrication

Features of The Production Bandsaw HBM440ALU

Prepared For Automation.

A powerful machine concept puts high demands on material handling. The production band saws of the HBM series are often configured as automated sawing systems.

Precision Portal-Design Guide System.

The combination of stable, low-vibration saw frame and the linear guide system in portal design ensure the best band sawing results and maximum service life.

Chip Disposal Suitable For The Application.

In the high-performance sawing of aluminium and non-ferrous metals, large quantities of chips are produced that have to be removed reliably.

Micro Spray System.

For process-safe lubrication of the saw band with spray oil. Due to the special arrangement of the spray nozzles, the saw band is reliably moistened even at high speed.

Cast Iron Band Guiding Parts.

Are made by BEHRINGER and provide vibration damping directly at the cutting edge, thus increasing tool life.

Servo Downfeed System.

The saw feed is carried out by means of a ball screw and servo motor. This results in significantly shorter idle times and more precise saw feeds.

Cast Iron Band Guiding Parts.

Are made by BEHRINGER and provide vibration damping directly at the cutting edge, thus increasing tool life.

Economical Use Of Carbide Saw Blades.

Due to robust design, use of latest servo technology and well dimensioned chip disposal.

Automatic Guide Arm.

Optimum sawing result without any adjustments - even with frequently changing material sizes.

Technical Data Production Bandsaw HBM440ALU

Cutting Range
Cutting range 90° round440 mm
Cutting range 90° flat440  x 440 mm
Smallest dimension to be sawn round20 mm
Smallest dimension to be sawn flat20 x 15 mm
Performance Characteristics
Feeding length single stroke600 mm
Drive power22 kW
Blade speed300 – 1,300 m/min
Saw blade dimensions7,200 x 34 x 1.1 mm
Rest piece length in automatic operation50 mm
Total power29 kW
Saw feedservo-feed via ball screw
Material feedball screw
Material clampinghydraulic
Saw blade cleaningelectrically driven chip brush
Dimensions and Weight
Length2,650 mm
Width4,385 mm
Height2,700 mm
Weight4,700 kg
Material support height800 mm
