Bandsaw Machine HBM440A Performance Automatic BEHRINGER

Mesin ini dirancang untuk pemotongan presisi dengan fitur otomatisasi canggih. Mesin ini memudahkan proses pemotongan, memastikan hasil yang konsisten dan berkualitas tinggi untuk berbagai industri. Konstruksinya yang kokoh dan kemampuan kinerja tinggi membuatnya cocok untuk tugas pemotongan pada berbagai material. Mesin ini cocok untuk lingkungan manufaktur yang bertujuan untuk mengoptimalkan produktivitas dan mencapai pemotongan akurat.


HBM440A Performance Automatic

The groundbreaking SpeedCutting technology integrated into the HBM440A high-speed saw series revolutionizes cutting performance, previously deemed unattainable. Especially effective when cutting tool steels, stainless steels, or high-alloy materials like Inconel or Titanium, the HBM440A demonstrates its full potential.

Production band saw HBM440A

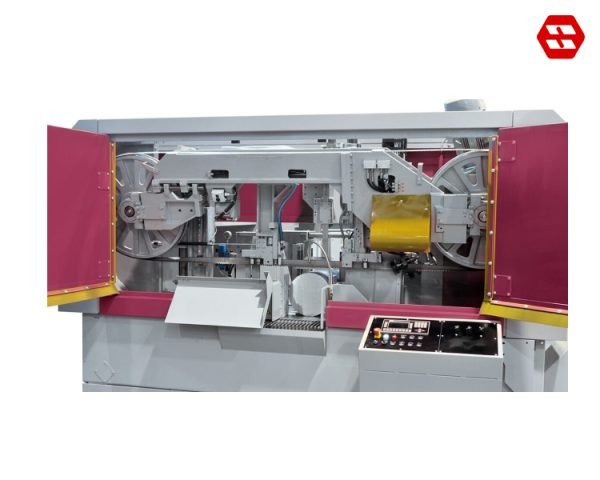

High-Performance Sawing Unit With BEHRINGER SpeedCutting Technology

Experience cutting-edge precision and efficiency with the high-performance sawing unit featuring BEHRINGER SpeedCutting technology. This innovative system delivers unprecedented cutting performance, particularly excelling in challenging materials like tool steels, stainless steels, Inconel, and Titanium.

High-performance sawing unit with BEHRINGER SpeedCutting technology

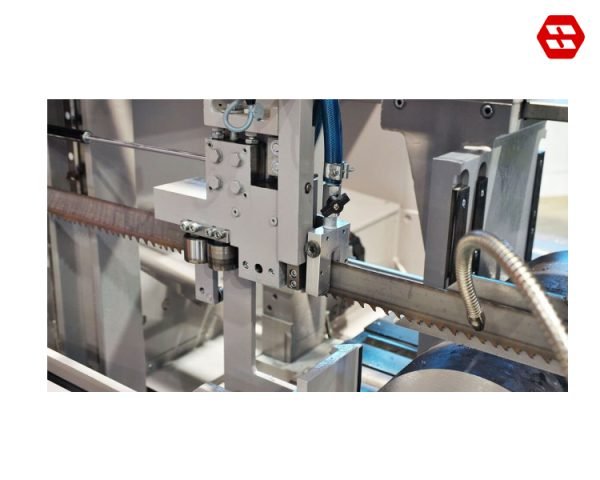

HBM Band Guide With High-Performance Cooling

The HBM band guide with high-performance cooling offers exceptional precision and efficiency in bandsaw operations.

HBM band guide with high-performance cooling

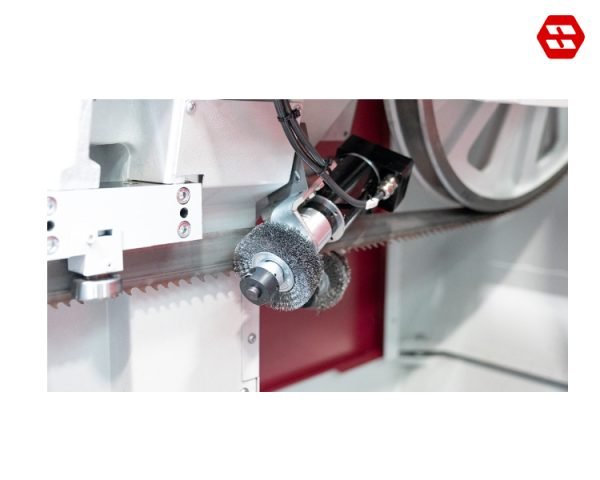

Duplex Chip Brush

The Duplex chip brush is a dual-brush system designed for efficient chip removal in machining operations. With its unique design, it effectively clears chips from workpieces and machine surfaces, ensuring uninterrupted workflow and optimal machining precision.

Duplex chip brush

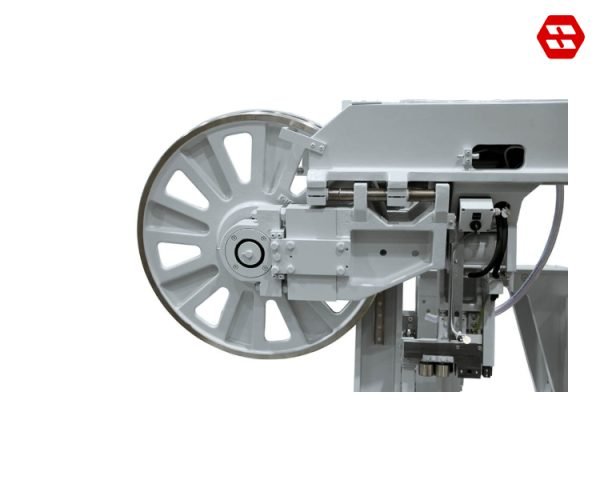

Cast Iron Band Guiding Parts

Are made by BEHRINGER and provide vibration damping directly at the cutting edge, thus increasing tool life.

Cast iron band guiding parts 5

Features of The Production Bandsaw HBM440A

Optimum Chip Disposal.

Highest cutting performance requires high standards of chip disposal. The wide, funnel-shaped machine base allows chips to fly freely into the chip conveyor with integrated coolant tank below.

Automatic Guide Arm.

Optimum sawing result without any adjustments - even with frequently changing material sizes.

Economical Use of Carbide Saw Blades.

Due to robust design, use of latest servo technology and well dimensioned chip disposal.

Precision Portal-Design Guide System.

The combination of stable, low-vibration saw frame and the linear guide system in portal design ensure the best band sawing results and maximum service life.

Servo Downfeed System.

The saw feed is carried out by means of a ball screw and servo motor. This results in significantly shorter idle times and more precise saw feeds.

Prepared For Automation.

A powerful machine concept puts high demands on material handling. The production band saws of the HBM series are often configured as automated sawing systems.

Sensitive BEHRINGER Cutting Pressure Control.

Increases the cutting performance when sawing tubes and profiles, as it automatically adapts the saw feed of the machine to the changing material cross-sections.

Technical Data Production Bandsaw HBM440A

Cutting Range
Cutting range 90° round440 mm
Cutting range 90° flat440  x 440 mm
Smallest dimension to be sawn round15 mm
Smallest dimension to be sawn flat12 x 12 mm
Dimensions and Weight
Length2,650 mm
Width4,385 mm
Height2,700 mm
Weight4,600 kg
Material support height800 mm
