Bandsaw Machine HBE860A Performance BEHRINGER

Mesin yang dirancang untuk pemotongan presisi dengan fitur-fitur canggih. Dengan konstruksi kokoh dan kemampuan performa tinggi, alat berat ini memberikan hasil pemotongan yang konsisten dan berkualitas tinggi yang cocok untuk berbagai industri. Efisiensinya menjadikannya ideal untuk memotong berbagai bahan dengan akurat. Mesin ini cocok untuk lingkungan manufaktur yang bertujuan untuk mengoptimalkan produktivitas secara konsisten.


HBE860A Performance

The HBE860A Performance high-performance automatic saw is engineered for rigorous applications in the steel trade, manufacturing, and metal production sectors. It excels in cutting large pipes or solid materials, including steel, plastic, or high-alloy materials, delivering precise and powerful cuts with ease of material handling.

Production band saw HBE860A Performance

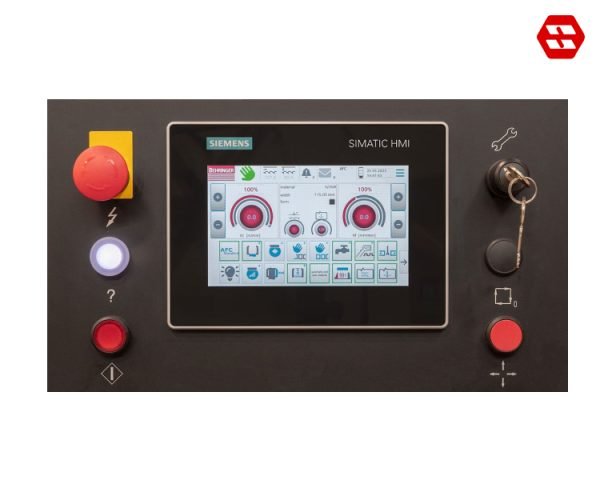

Intuitive BehrCtrl10 Touch Control

Experience intuitive control: BehrCtrl10 touchscreen

Intuitive BehrCtrl10 touch control 3

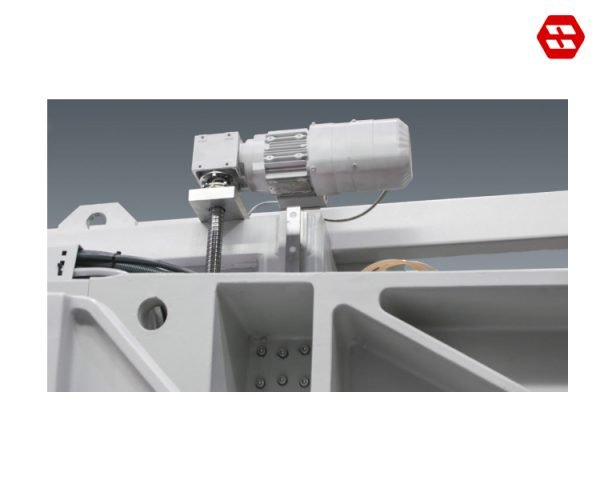

Servo-Downfeed With Cutting Pressure Control

Achieve precise cuts with automatic adjustment of cutting pressure, ensuring optimal performance and blade longevity.

Servo-downfeed with cutting pressure control

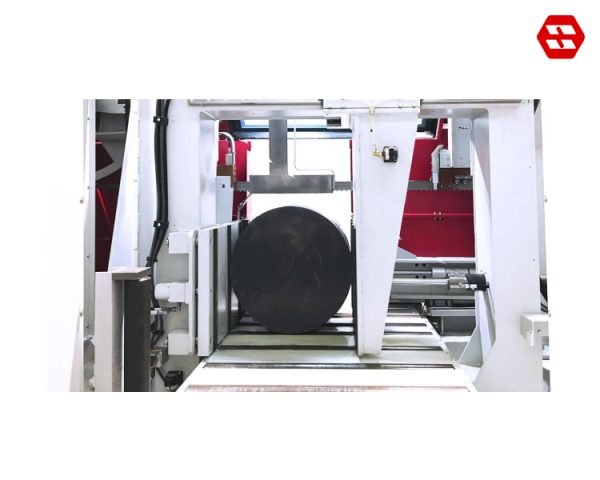

Massive Feed Gripper With Ball Screw

Massive feed gripper with ball screw: Ensure secure material handling and precise feeding in heavy-duty cutting operations.

Massive feed gripper with ball screw 1

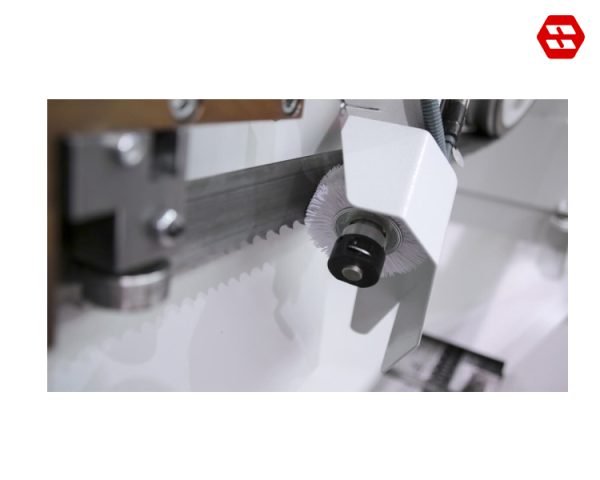

Electrically Driven Chip Brush

With BEHRINGER quick-change device for tool-free brush changes. The teeth of the saw band are protected by the special engagement angle.

Electrically driven chip brush 5

Features of The Production Bandsaw
HBE860A Performance

Precision Portal-Design Guide System.

The combination of stable, low-vibration saw frame and the linear guide system in portal design ensure the best band sawing results and maximum service life.

Servo Downfeed System.

The saw feed is carried out by means of a ball screw and servo motor. This results in significantly shorter idle times and more precise saw feeds.

Economical Use Of Carbide Saw Blades.

Due to robust design, use of latest servo technology and well dimensioned chip disposal.

Automatic Guide Arm.

Optimum sawing result without any adjustments - even with frequently changing material sizes.

Powerful Chip Conveyor.

Optimal chip disposal thanks to the funnel-shaped machine base and the paddle-style chip conveyor with an integrated coolant tank.


Selection of the material in an extensive material database. The AFC automatically calculates the optimal values for saw feed and cutting speed.

Cast Iron Band Guiding Parts.

Are made by BEHRINGER and provide vibration damping directly at the cutting edge, thus increasing tool life.

Sensitive BEHRINGER Cutting Pressure Control.

Increases the cutting performance when sawing tubes and profiles, as it automatically adapts the saw feed of the machine to the changing material cross-sections.

Robust Feeding Gripper With Linear Retracting fixed Vice Jaw.

Positions even solid material weighing tons to a tenth of a millimeter.

Double Clamping Vice.

Offers process reliability - especially when sawing bundles or making single cuts.

Technical Data Production Bandsaw HBE860A Performance

Cutting Range
Cutting range 90° round860 mm
Cutting range 90° flat860 x 860 mm
Smallest dimension to be sawn round20 mm
Smallest dimension to be sawn flat20 x 20 mm
Performance Characteristics
Feeding length single stroke500 mm
Drive power5.5 kW
Blade speed10 – 110 m/min
Saw blade dimensions9,875 x 54 (67) x 1.6 mm
Rest piece length in automatic operation55 mm
Total power12 kW
Saw feedservo-feed via ball screw
Material feedball screw
Material clampinghydraulic
Saw blade cleaningelectrically driven chip brush
Dimensions and Weight
Length2,525 mm
Width4,800 mm
Height3,550 mm
Weight9,000 kg
Material support height800 mm
