Bandsaw Machine HBM540ALU Performance Automatic BEHRINGER

Mesin ini dirancang khusus untuk memotong aluminium dan material non-besi lainnya dengan presisi. Dengan fitur otomatisasi canggih, alat berat ini meningkatkan efisiensi pemotongan dan memastikan hasil yang konsisten dan berkualitas tinggi. Desainnya yang kokoh dan kemampuan khusus menjadikannya cocok untuk industri yang memerlukan pemotongan presisi pada logam non-besi.


HBM540ALU Performance Automatic

The HBM540ALU aluminum bandsaw is specifically engineered for cutting ingots and billets crafted from aluminum or similar non-ferrous metals like magnesium. Delivering swift, reliable, and precise cuts with minimal kerf, it promotes future-proof and resource-efficient production practices.

Aluminium bandsaw HBM540ALU

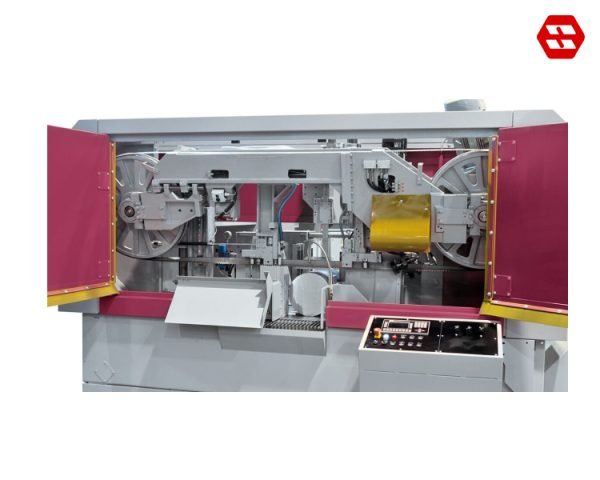

HBM High Performance Aluminium Sawing Unit

The HBM high-performance aluminum sawing unit offers precision and efficiency in cutting aluminum and similar non-ferrous metals. With advanced features and robust construction, this unit ensures swift and accurate cuts, contributing to optimized production processes.

HBM high performance aluminium sawing unit 1

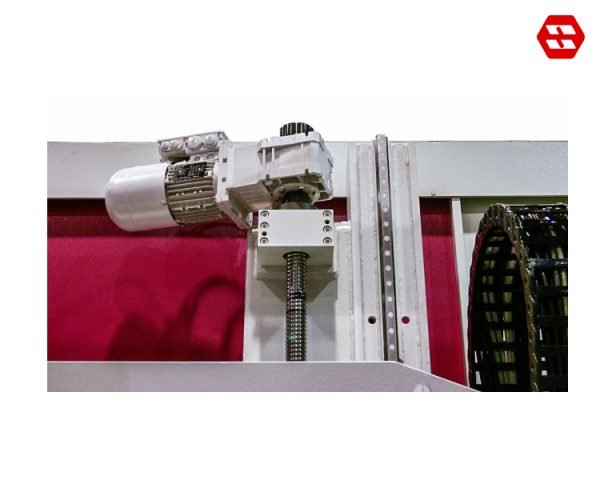

Servo Feed System For Short Non-Productive Times

The servo feed system minimizes downtime with swift, efficient transitions between cutting tasks.

Servo feed system for short non-productive times 1

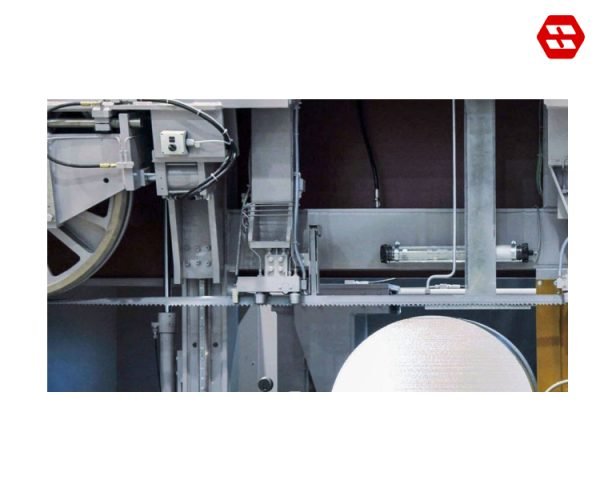

Roller Band Guides With Integrated Spray Lubrication

Ensure precise guidance of the saw band even at extremely high blade speeds. For a long service life, the bearings of the rollers are centrally lubricated by an automatic lubrication system.

Roller band guides with integrated spray lubrication 1

Features of The Production Bandsaw HBM540ALU

Prepared For Automation.

A powerful machine concept puts high demands on material handling. The production band saws of the HBM series are often configured as automated sawing systems.

Precision Portal-Design Guide System.

The combination of stable, low-vibration saw frame and the linear guide system in portal design ensure the best band sawing results and maximum service life.

Micro Spray System.

For process-safe lubrication of the saw band with spray oil. Due to the special arrangement of the spray nozzles, the saw band is reliably moistened even at high speed.

Chip disposal Suitable For The Application.

In the high-performance sawing of aluminium and non-ferrous metals, large quantities of chips are produced that have to be removed reliably.

Economical Use of Carbide Saw Blades.

Due to robust design, use of latest servo technology and well dimensioned chip disposal.

Servo Downfeed System.

The saw feed is carried out by means of a ball screw and servo motor. This results in significantly shorter idle times and more precise saw feeds.

Automatic Guide Arm.

Optimum sawing result without any adjustments - even with frequently changing material sizes.

Cast Iron Band Guiding Parts.

Are made by BEHRINGER and provide vibration damping directly at the cutting edge, thus increasing tool life.

Technical Data Production Bandsaw HBM540ALU

Cutting Range
Cutting range 90° round540 mm
Cutting range 90° flat630 x 540 mm
Smallest dimension to be sawn round20 mm
Smallest dimension to be sawn flat20 x 15 mm
Performance Characteristics
Feeding length single stroke500 mm
Drive power22 kW
Blade speed300 – 1,300 m/min
Saw blade dimensions7,500 x 34 x 1.1 mm
Rest piece length in automatic operation50 mm
Total power29 kW
Saw feedservo-feed via ball screw
Material feedball screw
Material clampinghydraulic
Saw blade cleaningelectrically driven chip brush
Dimensions and Weight
Length2,650 mm
Width4,385 mm
Height2,700 mm
Weight5.200 kg
Material support height800 mm
