Description
SHARK 452-1 SXI EVO
This robust machine is built to handle both complex cutting operations and the rigorous demands of industrial applications, ensuring accuracy and reliability. With its advanced technology and superior design, the SHARK 452-1 SXI EVO MEP is the ideal solution for businesses aiming to enhance their productivity and achieve flawless cutting results in their metalworking projects.

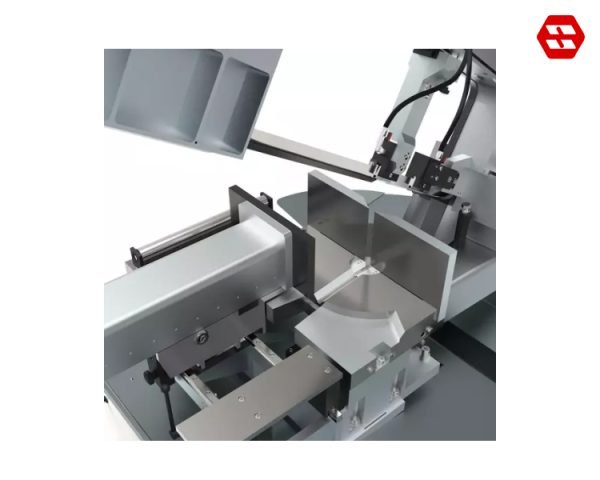

Cast-Iron Structure
Hydraulic system to control both the vice and head down feed rate that grants a constant pressure during the cut according to the feed set by the operator.
Functional Design
Design for a complate recovery of chips and coolant.This approach is critical in developing products, architectures, and systems that meet the real-world needs of users, ensuring that functionality drives the design process from conception to execution.
Vector Inverter For Infinite Variable Blade Rotation Speed Setting
The Vector Inverter for Infinite Variable Blade Rotation Speed Setting is a sophisticated control device designed to optimize bandsaw machine performance. It allows for precise and seamless adjustment of the blade's rotation speed, enabling operators to finely tune the cutting process according to the material's characteristics and the specific requirements of the task.
Hycraulic Positive Head Down Feed Rate and Vice Control
The Hydraulic Positive Head Down Feed Rate and Vice Control system is an advanced feature integrated into bandsaw machines for precise and efficient cutting operations. This innovative technology allows for controlled downward movement of the cutting head and the clamping of workpieces, optimizing cutting performance and accuracy.
Technical Data Bandsaw Machine Semi Automatic
SHARK 452-1 SXI EVO
MEP
CUTTING RANGE
 |  | | |
| 0° | 330 mm | 320 mm | 450 x 320 mm |
| +45° | 320 mm | 300 mm | 300 x 300 mm |
| +60° | 210 mm | 200 mm | 200 x 200 mm |
| – 45° | 320 mm | 300 mm | 300 x 300 mm |
| – 60° | 210 mm | 200 mm | 200 x 200 mm |
PERFORMANCE CHARACTERISTICS
| Max. vice opening | 455 mm |
| Band size | 4500 x 34 x 1.1 mm |
| Blade motor power | 4.0 Kw – Three-phase |
| Blade rotation speed | 15 ÷ 100 m/min |
