Bandsaw Machine Horizontal Mitre HBE320-523G BEHRINGER

Mesin ini memiliki pemotongan horizontal yang akurat dengan fungsi mitra. Dirancang untuk keperluan industri, mesin ini mahir dalam membuat potongan miring pada bidang horizontal dengan presisi dan efisiensi. Dengan konstruksi kokoh dan fitur-fitur canggih, alat ini memberikan hasil pemotongan yang konsisten dan berkualitas tinggi. Mesin ini untuk  lingkungan manufaktur yang ingin meningkatkan produktivitas pemotongan sekaligus memastikan kinerja yang sempurna.


Horizontal Mitre HBE320-523G

The HBE320-523G horizontal mitre saw seamlessly integrates modern high-performance machinery with BEHRINGER's distinctive features, delivering exceptional value for money. Tailored to meet the diverse needs of small and medium-sized enterprises in metal construction, sectional steel trade, mechanical engineering, and locksmith's workshops, this saw offers a wide range of applications.

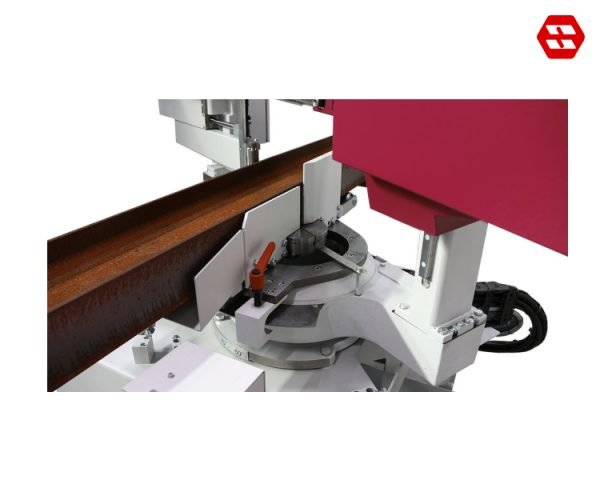

Simple Angle Adjustment

"Simple angle adjustment" refers to a user-friendly feature incorporated into various tools and equipment, enabling effortless modification of cutting or operational angles. This intuitive functionality simplifies tasks such as cutting materials or adjusting machinery settings, enhancing precision and efficiency in various applications.

Simple angle adjustment

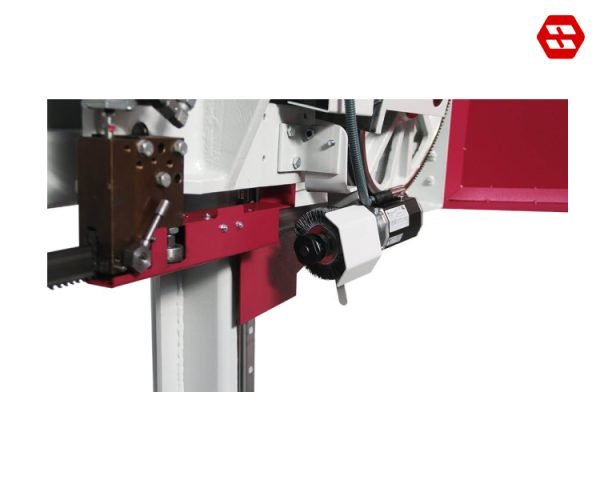

Electrically Driven Chip Brush

With BEHRINGER quick-change device for tool-free brush changes. The teeth of the saw band are protected by the special engagement angle.

Electrically driven chip brush 14

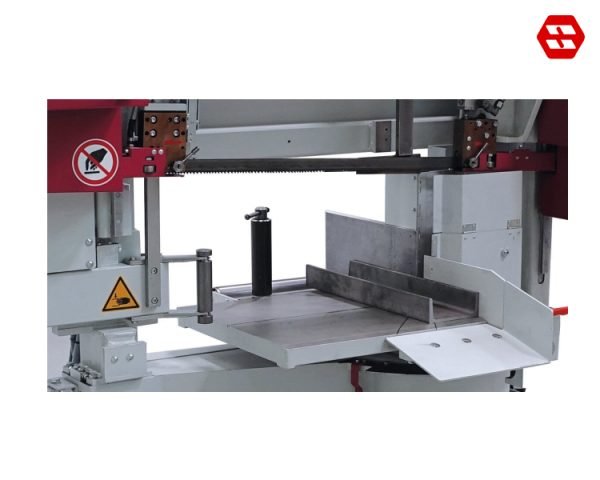

Enclosed Material Table

The closed table support makes working with the mitre bandsaw easier. Even short sections can be transported in and out of the machine without any problems.

Enclosed material table

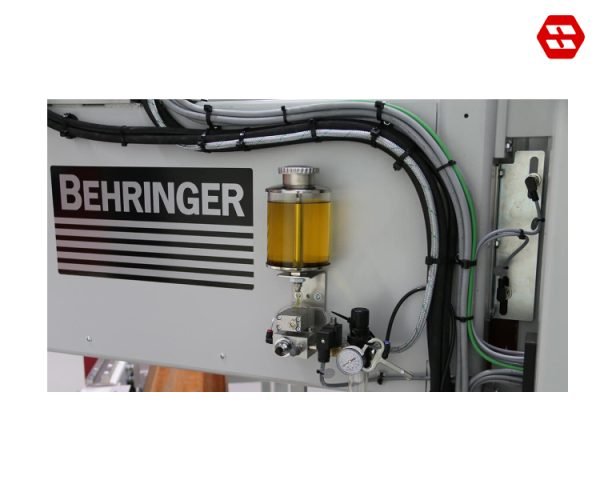

Micro Spray System

When sawing profiles, pipes and solid material, the standard minimum quantity lubrication system delivers the best results. The saw blade is constantly moistened with cutting oil via two nozzles.

Micro spray system

Features of The Metal Cutting Bandsaw HBE1060

Sensitive BEHRINGER Cutting Pressure Control.

Increases the cutting performance when sawing tubes and profiles, as it automatically adapts the saw feed of the machine to the changing material cross-sections.

Precision Portal-Design Guide System.

The combination of stable, low-vibration saw frame and the linear guide system in portal design ensure the best band sawing results and maximum service life.

Customer-Oriented Sawing Concepts.

BEHRINGER offers complete system solutions with individual material handling where everything fits together perfectly.

Automatic Guide Arm.

Optimum sawing result without any adjustments - even with frequently changing material sizes.

Energy Efficient Drives.

More output with less energy consumption. Protects the environment and your wallet.

3° Inclination of The Saw Blade.

Provides higher cutting performance when sawing hollow profiles and beams and reduces burr formation.

Cast Iron Band Guiding Parts.

Are made by BEHRINGER and provide vibration damping directly at the cutting edge, thus increasing tool life.

Technical Data Mitre Bandsaw HBE320-523G

Cutting Range
Cutting range 90° round320 mm
Cutting range 90° flat520 x 320 mm
75° Mitre left round / flat320 mm / 520 x 320 mm
60° Mitre left round / flat320 mm / 470 x 320 mm
45° Mitre left round / flat320 mm / 390 x 320 mm
30° Mitre left round / flat200 mm / 200 x 320 mm
75° Mitre right round / flat320 mm / 490 x 320 mm
60° Mitre right round / flat320 mm / 420 x 320 mm
45° Mitre right round / flat320 mm / 330 x 320 mm
Smallest dimension to be sawn round10 mm
Smallest dimension to be sawn flat10 x 8 mm
Performance Characteristics
Drive power2.6 kW
Blade speed15 – 110 m/min
Saw blade dimensions5,300 x 34 x 1.1 mm
Rest piece length3.7 kW
Total powerhydraulic
Material clampinghydraulic
Saw blade cleaningelectrically driven chip brush
Dimensions and Weight
Length1,385 mm
Width2,900 mm
Weight1,600 kg
Material support height800 mm
