Description
Horizontal Mitre HBE420-723G
The horizontal mitre saw HBE420-723G perfectly combines the advantages of modern high-performance machines for individual sawing tasks with proven, unique Behringer features. And all this at an optimum price-performance ratio. With its extensive range of applications, the mitre saw reliably covers all the requirements of small and medium-sized businesses in metal construction, sectional steel trade, mechanical engineering and locksmith's shops.

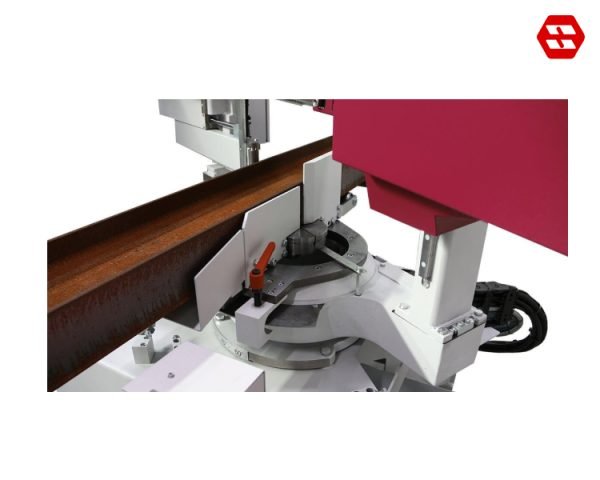

Simple Angle Adjustment
"Simple angle adjustment" refers to a user-friendly feature incorporated into various tools and equipment, enabling effortless modification of cutting or operational angles. This intuitive functionality simplifies tasks such as cutting materials or adjusting machinery settings, enhancing precision and efficiency in various applications.
Electrically Driven Chip Brush
With BEHRINGER quick-change device for tool-free brush changes. The teeth of the saw band are protected by the special engagement angle.

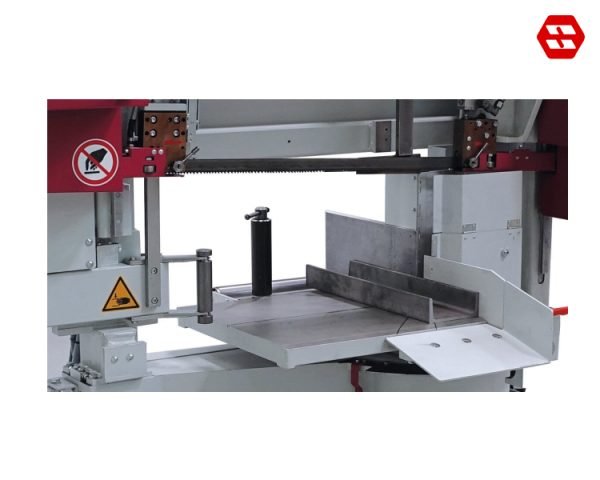

Enclosed Material Table
The closed table support makes working with the mitre bandsaw easier. Even short sections can be transported in and out of the machine without any problems.

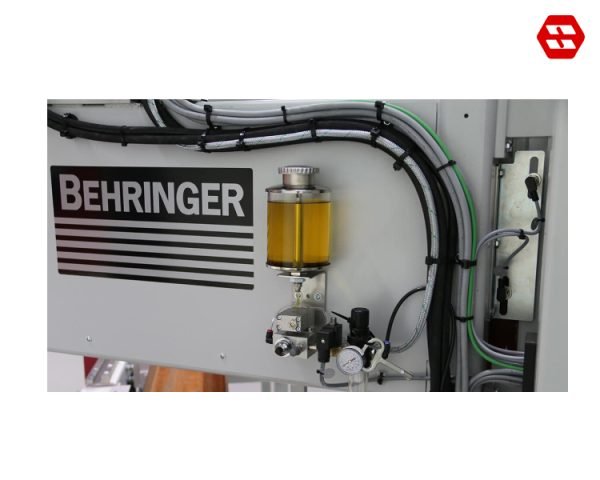

Micro Spray System
When sawing profiles, pipes and solid material, the standard minimum quantity lubrication system delivers the best results. The saw blade is constantly moistened with cutting oil via two nozzles.
Features of The Metal Cutting Bandsaw HBE420 - 723G
Sensitive BEHRINGER Cutting Pressure Control.
Increases the cutting performance when sawing tubes and profiles, as it automatically adapts the saw feed of the machine to the changing material cross-sections.
Precision Portal-Design Guide System.
The combination of stable, low-vibration saw frame and the linear guide system in portal design ensure the best band sawing results and maximum service life.
Customer-Oriented Sawing Concepts.
BEHRINGER offers complete system solutions with individual material handling where everything fits together perfectly.
Automatic Guide Arm.
Optimum sawing result without any adjustments - even with frequently changing material sizes.
Energy Efficient Drives.
More output with less energy consumption. Protects the environment and your wallet.
3° Inclination of The Saw Blade.
Provides higher cutting performance when sawing hollow profiles and beams and reduces burr formation.
Cast Iron Band Guiding Parts.
Are made by BEHRINGER and provide vibration damping directly at the cutting edge, thus increasing tool life.
Technical Data Mitre Bandsaw HBE420-723G
| Cutting Range | |
| Cutting range 90° round | 420 mm |
| Cutting range 90° flat | 700 x 400 mm |
| 75° Mitre left round / flat | 400 mm / 700 x 400 mm |
| 60° Mitre left round / flat | 400 mm / 650 x 400 mm |
| 45° Mitre left round / flat | 400 mm / 540 x 400 mm |
| 30° Mitre left round / flat | 300 mm / 300 x 350 mm |
| 75° Mitre right round / flat | 400 mm / 700 x 400 mm |
| 60° Mitre right round / flat | 400 mm / 600 x 400 mm |
| 45° Mitre right round / flat | 400 mm / 470 x 400 mm |
| Smallest dimension to be sawn round | 15 mm |
| Smallest dimension to be sawn flat | 15 x 10 mm |
| Performance Characteristics | |
| Drive power | 5.2 kW |
| Blade speed | 15 – 130 m/min |
| Saw blade dimensions | 6,840 x 41 x 1.3 mm |
| Rest piece length | 55 mm |
| Total power | 11 kW |
| Saw feed | hydraulic |
| Material clamping | hydraulic |
| Saw blade cleaning | electrically driven chip brush |
| Dimensions and Weight | |
| Length | 1,440 mm |
| Width | 3,650 mm |
| Height | 2,150 mm |
| Weight | 2,500 kg |
| Material support height | 800 mm |
