Description
Horizontal Mitre HBE610-1256
The BEHRINGER Bandsaw Machine Horizontal Mitre HBE610-1256 is a cutting-edge industrial tool engineered for precision metal cutting tasks. Featuring horizontal configuration and mitre cutting capability, it offers versatility for various cutting angles. With advanced technology and BEHRINGER's renowned features, this high-performance machine ensures exceptional accuracy, efficiency, and durability.

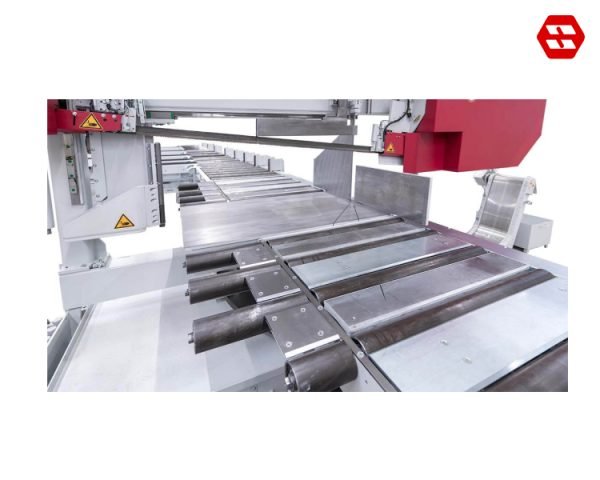

Enclosed Material Table
An Enclosed Material Table offers a secure and organized workspace for handling materials in various industrial applications. With protective barriers or sides, it ensures safety by containing materials within the table area, preventing spills or accidents.

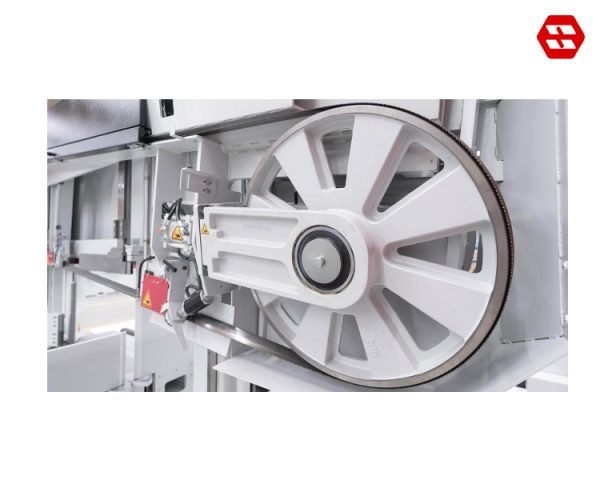

Cast Iron Band Guiding Parts
Are made by BEHRINGER and provide vibration damping directly at the cutting edge, thus increasing tool life.

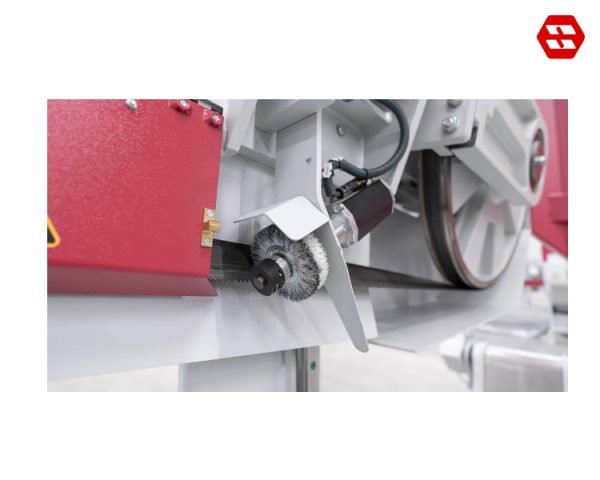

Electrically Driven Chip Brush
With BEHRINGER quick-change device for tool-free brush changes. The teeth of the saw band are protected by the special engagement angle.

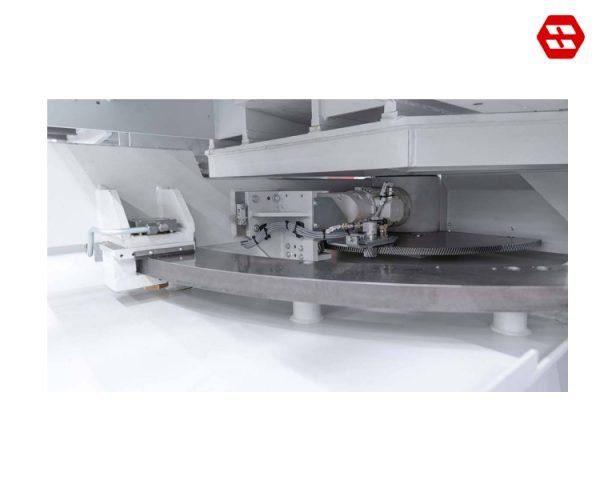

Fast NC Mitre Angle Adjustment
The Fast NC Mitre Angle Adjustment feature enables rapid and precise adjustment of cutting angles in automated industrial processes. Utilizing advanced numerical control technology, this system facilitates swift modifications to the cutting angle, optimizing efficiency and accuracy.
Powerful PC Control
The Powerful PC Control system offers advanced computing capabilities for precise and efficient management of industrial processes. With robust hardware and intuitive software, it enables comprehensive control and monitoring of equipment, ensuring optimal performance and productivity.

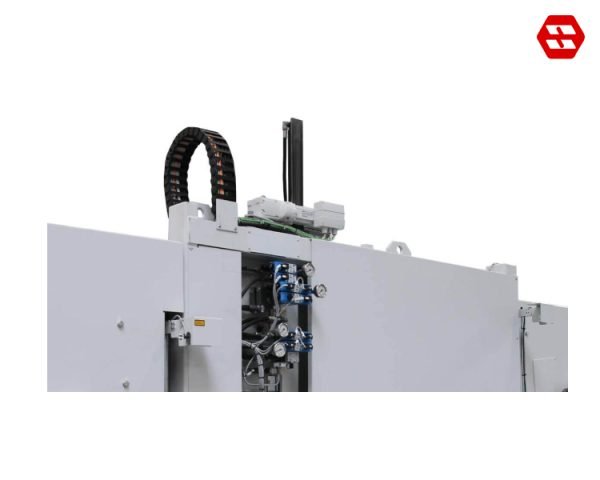

Servo feed System With BEHRINGER Cutting Pressure Control
The Servo Feed System with BEHRINGER Cutting Pressure Control integrates precision servo technology with advanced pressure control by BEHRINGER, enhancing efficiency and accuracy in metal cutting applications. This system ensures consistent and optimized feed rates while dynamically adjusting cutting pressure, resulting in precise and clean cuts across various materials.
Features of The Metal Cutting Bandsaw HBE610-1256G
Sensitive BEHRINGER Cutting Pressure Control.
Increases the cutting performance when sawing tubes and profiles, as it automatically adapts the saw feed of the machine to the changing material cross-sections.
Precision Portal-Design Guide System.
The combination of stable, low-vibration saw frame and the linear guide system in portal design ensure the best band sawing results and maximum service life.
Safe Material Flow - Even With Short Starting and Cut-off Lengths.
The closed table support and the clever connection to material handling systems offer maximum process reliability in fully automatic operation.
Downfeed Control With Servo Drive
The saw feed is carried out by means of a ball screw and servo motor. This results in considerably shorter non-productive times and more precise saw feeds.
Vertical Clamping Device on Both Sides of The Saw Band.
Thanks to the standard combination of horizontal and vertical clamping device, all profile shapes are securely clamped.
Automatic Guide Arm.
Optimum sawing result without any adjustments - even with frequently changing material sizes.
6° Inclination of The Saw Band
Provides significantly higher cutting performance when sawing large beams and hollow profiles and reduces burr formation.
Powerful Saw Drive.
With a wide range of blade speed adjustment offers flexibility for various starting materials from stainless steel to aluminium.
Double Clamping Vice.
Offers process reliability - especially when sawing bundles or making single cuts.
Customer-Oriented Sawing Concepts.
BEHRINGER offers complete system solutions with individual material handling where everything fits together perfectly.
Micro Spray System.
When sawing profiles, pipes and solid material, the standard minimum quantity lubrication system delivers the best results.
Technical Data Mitre Bandsaw HBE610-1256G
| Cutting Range | |
| Cutting range 90° round | 610 mm |
| Cutting range 90° flat | 1,250 x 610 mm |
| 75° Mitre left round / flat | 610 mm / 1,200 x 610 mm |
| 60° Mitre left round / flat | 610 mm / 1,100 x 610 mm |
| 45° Mitre left round / flat | 610 mm / 880 x 610 mm |
| 30° Mitre left round / flat | 610 mm / 610 x 610 mm |
| 75° Mitre right round / flat | 610 mm / 1,200 x 610 mm |
| 60° Mitre right round / flat | 610 mm / 1,100 x 610 mm |
| 45° Mitre right round / flat | 610 mm / 880 x 610 mm |
| Smallest dimension to be sawn round | 30 mm |
| Smallest dimension to be sawn flat | 30 x 30 mm |
| Performance Characteristics | |
| Drive power | 7.5 kW |
| Blade speed | 17 – 120 m/min |
| Saw blade dimensions | 10,000 x 54 (67) x 1.6 mm |
| Rest piece length | 45 mm |
| Total power | 16 kW |
| Saw feed | Servo feed via ball screw |
| Material clamping | hydraulic |
| Saw blade cleaning | electrically driven chip brush |
| Dimensions and Weight | |
| Length | 1,950 mm (4,700 mm at mitre angle 30°) |
| Width | 4,700 mm |
| Height | 3,240 mm |
| Weight | 4,500 kg |
| Material support height | 800 mm |
