SAWING
RF-1018R (2)

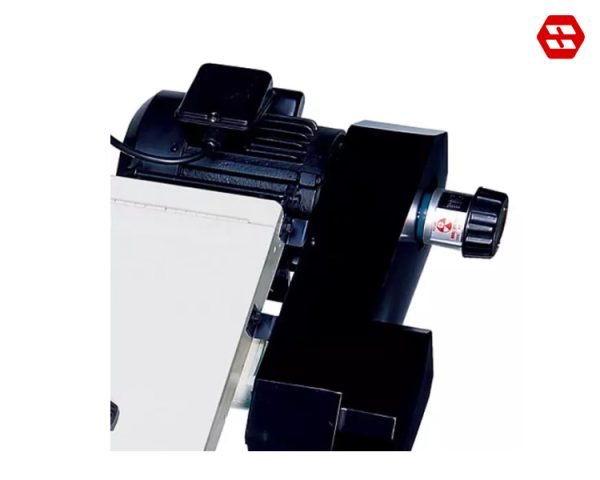

RF-1018R (3)

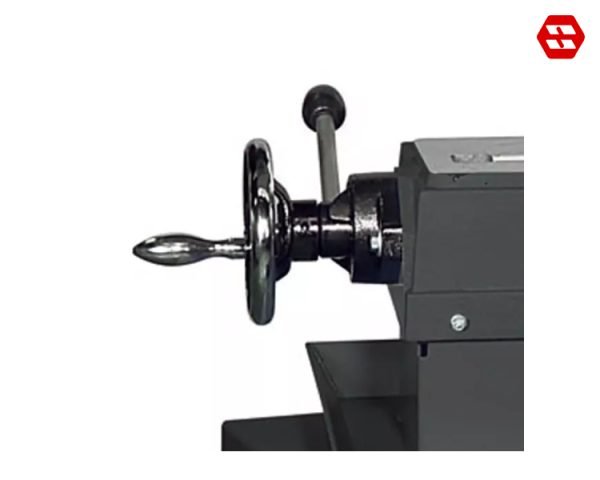

RF-1018R (1)

Bandsaw Machine RF-1018R RongFu

Merupakan alat yang kuat dan dirancang untuk pemotongan logam presisi. Dengan konstruksi kokoh dan kuat, gergaji ini memiliki pemotongan akurat pada berbagai material. Desainnya yang memiliki kontrol intuitif menjadikannya ideal untuk bengkel dan industri skala kecil hingga menengah. Mesin yang mempunyai proses pemotongan, meningkatkan produktivitas sekaligus memastikan hasil berkualitas tinggi yang konsisten.

Categories: , , ,

Description

10” X 18″ Metal Bandsaw RF-1018R

With its advanced features and sturdy construction, the RF-1018R ensures smooth operation and high-quality results when cutting various materials. Ideal for professionals and hobbyists alike seeking superior performance in their cutting operations.

RF-1018R (2)

Cutting Capacity

Choose the right bandsaw for your needs based on its cutting capacity.

Cutting Capacity RF-1018R

Features

RF-1018R

Work Table Swivel for Angle Cutting Saves Machine Space.
T-Slot Design Swivel Base for Stability.
Cast Blade Wheels for Strength & Durability.
Heavy Duty 4 Step Pulley Gearbox.
Hydraulic Brake Down Feed Dial on Control Panel.
Large Setting Scale for Counter Blade Position Setting.
Carbide Guide with Bearing fr Stability and Durability.
Tru-lock Vise Provides Firm Clamping.
Adjustable Blade Guide Arm Increases Work Piece Precision & Saw Blade Life.
Clamping Vise for 0º – 45º Angle Cutting.
Coolant System for Wet Cutting.
Wide Chip Tray with Filter Net for Easy Chip Handling.

RF-1018RV

Heavy Duty Variable Speed.

RF-1018RVAA

Semi Auto Bow.
Hydraulic Vise.

Table Specifications

ItemRF-1018RRF-1018RVRF-1018RVAA
Main Motor HP2 (1.5kw)(3-phase)2 (1.5kw)(3-phase)2 (1.5kw)(3-phase)
Speed MT/min60HZ / 30-60-88-11560HZ / 30~11060HZ / 30~110
Speed Ft/min60HZ /114-196-288-37760HZ / 98~36060HZ / 98~360
Saw Blade mm (WxTxL)27×0.9×309027×0.9×309027×0.9×3090
Saw Blade inch (WxTxL)1.06×0.045×121.661.06×0.045×121.661.06×0.045×121.66
Machine Dimensions mm (LxWxH)1800x820x12802075x820x12802075x820x1280
Machine Dimensions inch (LxWxH)70.9×32.3×50.481.7×32.3×50.481.7×32.3×50.4
Packing Dimensions mm (LxWxH)1730x830x11601730x830x11601730x830x1160
Packing Dimensions inch (LxWxH)68.1×32.7×45.768.1×32.7×45.768.1×32.7×45.7
Machine Weight NW/GW390/430 kgs
860/945 lbs		390/430 kgs
860/945 lbs		420/470 kgs
925/1035 lbs
No.of Machines
Packed in 20″ container		7 sets / SKD 14 sets7 sets / SKD 14 sets7 sets / SKD 14 sets
No.of Machines
Packed in 40″ container		14 sets/ SKD 28 sets14 sets/ SKD 28 sets14 sets/ SKD 28 sets
