Description

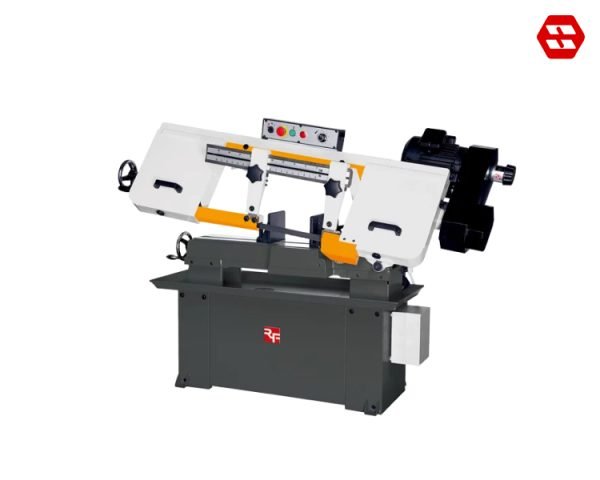

9” X 16” Step Pulley Metal Bandsaw RF-916
While the adjustable blade speed allows for optimal cutting performance tailored to different materials and thicknesses. With user-friendly controls and a durable bi-metal blade, the RF-916 delivers consistent and accurate cuts, making it an indispensable addition to any workshop or DIY enthusiast's toolkit.
![RF-916 (1)](https://www.sawing.co.id/wp-content/uploads/2024/03/RF-916-1.jpg)
Cutting Capacity
Choose the right bandsaw for your needs based on its cutting capacity.
![](https://www.sawing.co.id/wp-content/uploads/2024/03/Cutting-Capacity-RF-916.jpg)
Features
RF-916S
Centralized Control Panel on Top of Saw Bow.
10L Coolant System.
Heavy-duty, Precision-ground, Cast Iron Table.
Hydraulic Downfeed Control.
Quick-positioning Vise.
Sliding Cutter Depth Gauge.
Handwheel Blade Tensioner.
One-piece Saw Bow.

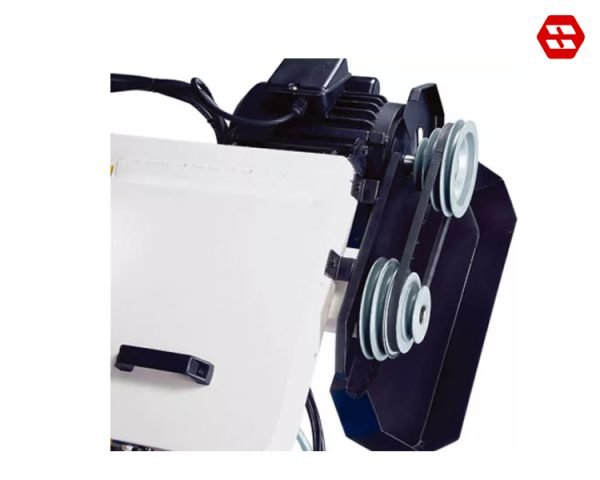

Easy-access to Belt Drive for Blade Speed Change.
Emergency Stop Button & Magnetic Safety Switch.
RF-916SV
Mechanical Variable Speed.
Table Specifications
Item | RF-916S | RF-916SV |
---|---|---|
Main Motor HP | 1.5 | 1.5 |
Speed MT/min | 60HZ / 32-60-88-115 50HZ / 29-50-73-96 | 60HZ /22-95 |
Speed Ft/min | 60HZ /114-196-288-377 50HZ /95-164-239-314 | 60HZ /73-312 |
Saw Blade mm (WxTxL) | 27×0.9×2910 | 27×0.9×2910 |
Saw Blade inch (WxTxL) | 1.06×0.035×114.57 | 1.06×0.035×114.57 |
Machine Dimensions mm (LxWxH) | 1580x549x1229 | 1580x549x1229 |
Machine Dimensions inch (LxWxH) | 62.2×21.6×48.4 | 62.2×21.6×48.4 |
Packing Dimensions mm (LxWxH) | 1700x624x1235 (SKD 1680x485x1145) | 1700x624x1235 (SKD 1680x485x1145) |
Packing Dimensions inch (LxWxH) | 67x25x49 (SKD 66x19x45) | 67x25x49 (SKD 66x19x45) |
Machine Weight NW/GW | 280/310 kgs 620/680 lbs | 280/310 kgs 620/680 lbs |
No.of Machines Packed in 20″ container | 18 sets / SKD 30sets | 18 sets / SKD 30sets |
