Bandsaw Machine Automatic Table LPS-TA BEHRINGER

Merupakan solusi pemotongan canggih yang dirancang untuk pemotongan otomatis dan presisi. Dilengkapi meja otomatis dan sistem kontrol canggih, alat berat ini memiliki kinerja pemotongan yang efisien dan konsisten. Kecepatan pemotongan yang dapat disesuaikan membuatnya mudah dioperasikan, sementara konstruksinya yang kokoh memastikan daya tahanyang sempurna. Cocok untuk industri seperti fabrikasi logam,


Automatic Table LPS-TA

The Automatic Table Bandsaw LPS-TA is the ideal solution from BEHRINGER when it comes to fully automatic cutting of small plates and blocks. By producing flat and rectangular material from sheets, advantages can be achieved in material purchasing and significantly reduced storage costs.

Automatic table band saw LPS-TA

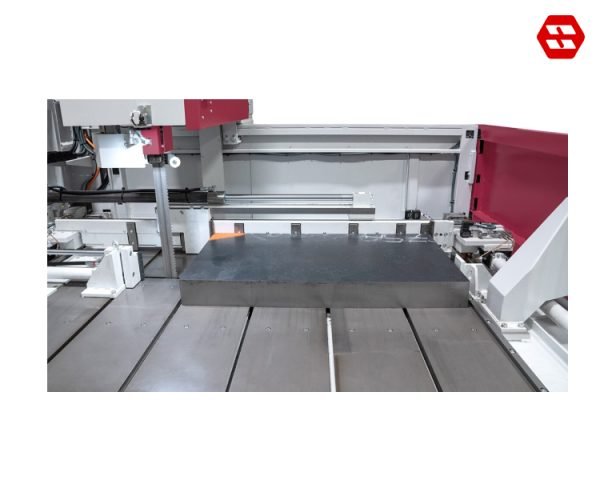

Automatic Material Positioning

Experience seamless precision with our automatic material positioning system. Engineered for efficiency and accuracy, this advanced technology ensures effortless and precise alignment of materials for cutting.

Automatic material positioning

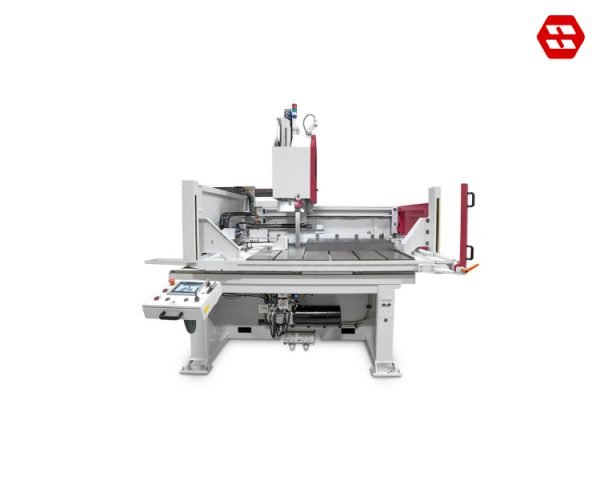

Compact Dimensions Due to Intelligent Protection Devices

Maximize space efficiency with our compact bandsaw machine, engineered with intelligent protection devices. Designed to prioritize safety without compromising on functionality, this innovative feature ensures optimal performance while minimizing footprint.

Compact dimensions due to intelligent protection devices

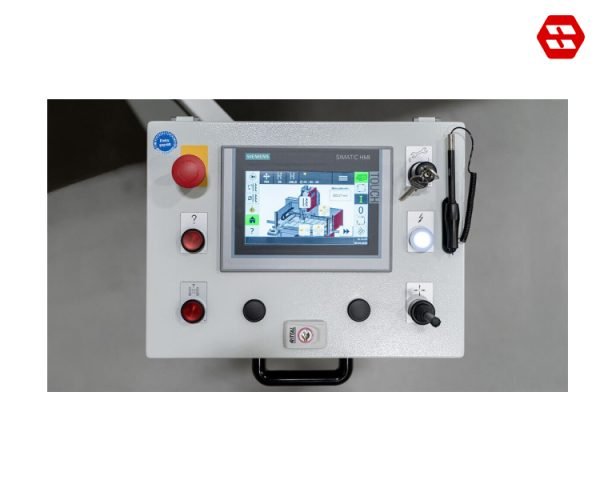

Intuitive Touch Control System

Experience seamless control with our intuitive touch control system. Engineered for effortless operation, this advanced technology offers intuitive navigation and precise adjustments.

Intuitive touch control system

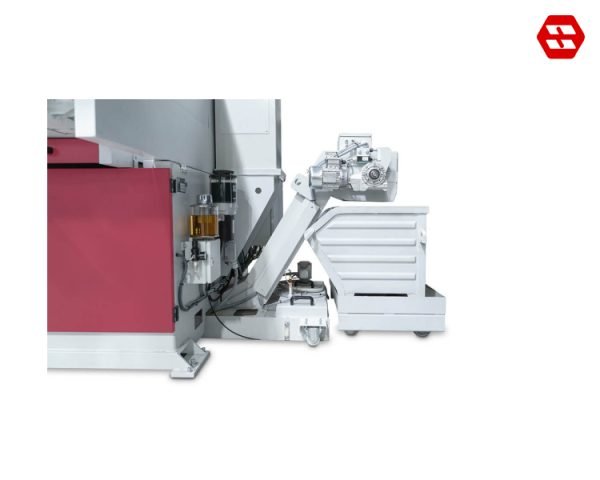

Chip Conveyor With Integrated Coolant Tank

A generously sized chip conveyor with integrated coolant tank is located under the saw unit, directly in the chip flow direction. Any chips and coolant are collected here and separated.

Chip conveyor with integrated coolant tank 3

Features of The Table Bandsaw LPS-TA

Unsurpassed Precision and Cutting Performance.

The high cutting accuracy, quiet running and long blade life are all down to the special torsion resistant design of the saw frame.

Advantages in Material Purchasing.

By producing flat materials from large sheets, rationalisation effects can be achieved both in warehousing and in the purchase of raw materials.

Powered Duplex Chip Brushes.

Actively clean the blade and prevent chips being drawn into the cutting channel.

Movable Material Support Table.

For easy loading and unloading by crane, the material table of the vertical saw can be moved out from under the saw unit.

Automatic Feeding Unit.

Thanks to the combination of NC-controlled feeding unit and intelligent control, plates can be separated into strips fully automatically.

Quick Bandsaw Blade Change.

Quick and easy – tool-free bandsaw blade changes mean shortest set-up times. Just a few simple steps are all that is needed to change the bandsaw blade of the block saw.

Cast Iron Band Guiding Parts.

Are made by BEHRINGER and provide vibration damping directly at the cutting edge, thus increasing tool life.

Technical Data Table Bandsaw LPS-TA

Cutting Range
Cutting length1,520 mm
Cutting width620 mm
Cutting height400 mm
Minimum cutting width10 mm
Minimum cutting height15 mm
Performance Characteristics
Drive power4 kW
Blade speed17 – 120 m/min
Saw blade dimensions5,730 x 41 x 1.3 mm
Total power6 kW
Material feeding length600 mm
Supporting area inside table1,540 x 620 mm
Supporting area outside table1,540 x 640 mm
Maximum table load3,000 kg
Dimensions and Weight
Length4,250 mm
Width3,450 mm
Height3,200 mm
Weight4,000 kg
Material support height1,200mm
