Description
Table Bandsaw LPS-T
With its moveable support table, the easy-to-use LPS-T vertical saw is the all-rounder when it comes to sawing small, compact parts and short sections. Those are typically needed i.e. in toolmaking. The compact vertical saw - ideal for toolmaking and test cuts

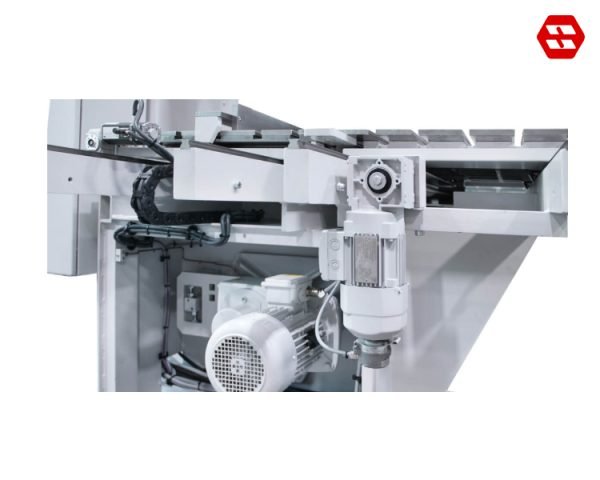

Table Positioning via Ball Screw Spindle
Achieve precise table positioning with ease using our ball screw spindle system. Designed for accuracy and reliability, this technology ensures smooth and efficient adjustments, enhancing the performance of your equipment.

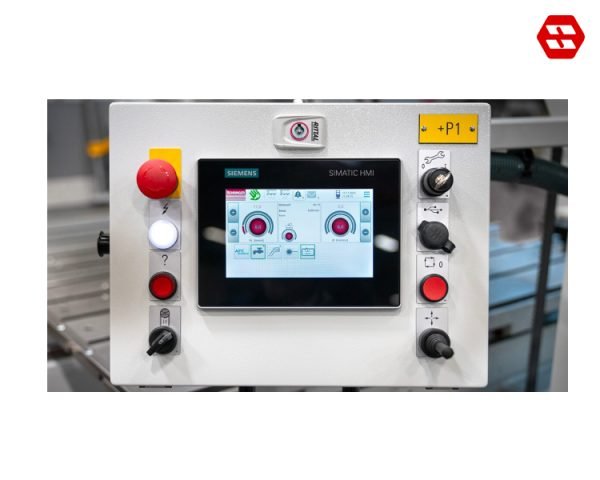

Intuitive Touch Control BehrCtrl10
Experience seamless control with the BehrCtrl10 intuitive touch system. Engineered for user-friendly operation, this advanced technology offers effortless navigation and precise adjustments.

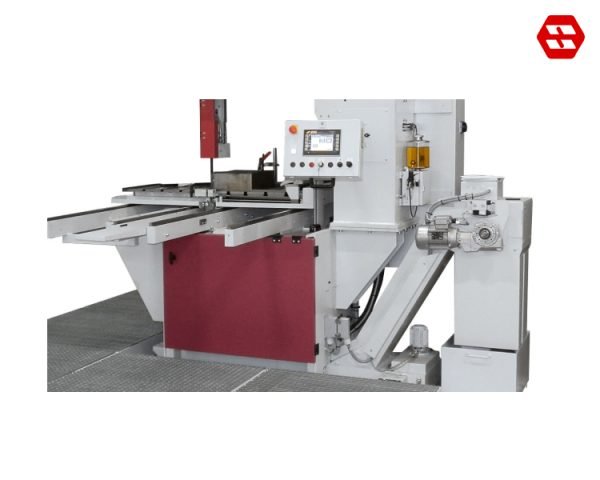

Chip Conveyor With Integrated Coolant Tank
A generously sized chip conveyor with integrated coolant tank is located under the saw unit, directly in the chip flow direction. Any chips and coolant are collected here and separated.
A Special Solution: The Ring Saw
The Innovative Ring Saw—a specialized solution for unique cutting needs. Engineered for precision and versatility, this cutting-edge tool offers efficient and accurate cutting of various materials in unconventional shapes.
Features of The Table Bandsaw LPS-T
Quick Bandsaw Blade Change.
Quick and easy – tool-free bandsaw blade changes mean shortest set-up times. Just a few simple steps are all that is needed to change the bandsaw blade of the block saw.
Cast Iron Band Guiding Parts.
Are made by BEHRINGER and provide vibration damping directly at the cutting edge, thus increasing tool life.
Movable Material Support Table.
For easy loading and unloading by crane, the material table of the vertical saw can be moved out from under the saw unit.
Servo Feed System.
The BEHRINGER servo feeding system ensures constant chip removal and makes better use of the capabilities of modern bandsaw blades.
Unsurpassed Precision and Cutting Performance.
The high cutting accuracy, quiet running and long blade life are all down to the special torsion resistant design of the saw frame.
NC Measuring Unit.
The LPS-T can be equipped with an optional NC-controlled measuring unit. The cutting depth is digitally pre-programmed in the control system.
Technical Data Table Bandsaw LPS-T
| Cutting Range | |
| Cutting length | 1,270 mm |
| Cutting width | 620 mm |
| Cutting height | 600 mm |
| Minimum cutting width | 5 mm |
| Minimum cutting height | 10 mm |
| Performance Characteristics | |
| Drive power | 4 kW |
| Blade speed | 17 – 120 m/min |
| Saw blade dimensions | 5,730 x 41 x 1.3 mm |
| Total power | 6 kW |
| Supporting area inside table | 1,260 x 640 mm |
| Supporting area outside table | 1,260 x 640 mm |
| Dimensions and Weight | |
| Length | 2,900 mm |
| Width | 2,750 mm |
| Height | 3,120 mm |
| Weight | 3,200 kg |
| Material support height | 1,150mm |
