Bandsaw Machine Mitre Saw SLB240G-HA BEHRINGER

Mesin dengan kemampuan memotong presisi yang dirancang untuk pemotongan logam serbaguna. Gergaji  ini memungkinkan pemotongan miring yang akurat pada berbagai material. Memudahkan proses pemotongan, meningkatkan efisiensi sekaligus menjaga presisi dan konsistensi. Ini pilihan yang  tepat untuk para profesional dan industri yang mencari mesin gergaji  serbaguna yang mampu melakukan pemotongan lurus dan miring.


Automatic Bandsaw SLB240G-HA

The Bandsaw of the SLB series from BEHRINGER is a reliable partner for daily sawing tasks in the workshop and factory. The SLB240G-HA is suitable for cutting tubes, profiles and solid material made of metal and comparable plastics. In addition to the attractive price, cutting precision, performance and reliability play the main role.

Mitre saw SLB230G

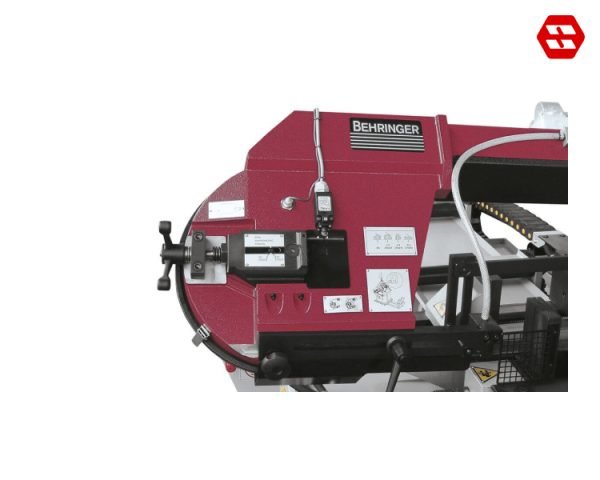

Saw Band Tensioning

The saw band is tensioned manually. The setting of the correct tensioning force is displayed optically. In order to prevent overloading during the sawing process, the pressure is equalized by means of a pretensioned disc spring package. In the event of a band break, the sawing machine switches off automatically.

Saw Band Tensioning

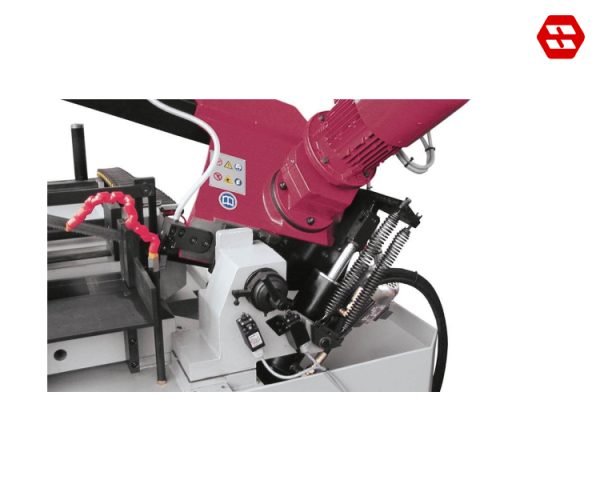

Hydraulic Saw Feed

The saw feed is hydraulically controlled with an infinitely adjustable feed rate. The lifting and lowering of the saw frame is controlled by push buttons.

Hydraulic Saw Feed

Control Panel

The Control Panel, an intuitive interface designed to streamline operation and control of industrial machinery, ensuring efficient performance and ease of use.

Control Panel 2

Features of The Automatic Bandsaw SLB240AG-HA

Robust Material Vice With Quick-Clamping Device.

The material is clamped by a robust vice with a hydraulic quick-clamping device. The vice is adjusted to the material width using a handwheel.

Precise Band Guides.

Combination of roller and carbide guide of the saw band. Adjustment of the movable band guide according to the cutting width.

Frequency-Controlled Saw Drive.

Offers maximum flexibility when sawing different material grades such as stainless steel or aluminum.

NC Program Control.

Modern programmable logic controller with clear masks on the LCD display for simple and safe manual and automatic operation.

Hydraulic Saw Feed.

The saw feed is hydraulically controlled with an infinitely adjustable feed rate. The lifting and lowering of the saw frame is controlled by push buttons.

Coolant System.

The machine is equipped with 2 regulated coolant nozzles. The coolant tank can be removed for easy cleaning.

Technical Data Automatic Bandsaw SLB240G-HA

Cutting Range
Cutting range 90° round260 mm
Cutting range 90° flat370 x 260 mm
45° Miter right round260 mm
45° Miter right square260 x 260 mm
45° Miter right flat290 x 120 mm
30° Miter right round180 mm
30° Miter right square180 x 180 mm
30° Miter right flat190 x 90 mm
Smallest dimension to be sawn round10 mm
Smallest dimension to be sawn flat10 x 6 mm
Performance Characteristics
Feeding length single stroke1.5 kW
Drive power16 – 120 m/min
Blade speed3,300 x 27 x 0.9 mm
Dimensions and Weight
Length1,600 mm
Width760 mm
Height1,900 mm
Weight515 kg
Material support height960 mm
