Bandsaw Machine Mitre Saw Swing Frame SLB230DG BEHRINGER

Mesin dengan alat pemotong serbaguna yang dirancang untuk pemotongan logam lurus dan miring. Dengan kemampuan dan gergaji ini memungkinkan pemotongan miring yang akurat pada berbagai material. Konstruksinya yang kokoh dan fitur-fitur canggihnya memastikan kinerja pemotongan yang presisinya tinggi, cocok untuk industri. Meningkatkan efisiensi pemotongan, mengurangi waktu produksi dengan tetap menjaga kualitas dan akurasi yang luar biasa.


Mitre Saw SLB230DG

Efficient operation and accurate cutting are hallmarks of the SLB series mitre bandsaw from BEHRINGER, serving as a dependable asset for daily sawing tasks in workshops and factories. The SLB230DG is adept at cutting tubes, profiles, and solid materials made of metal and similar plastics. Alongside its appealing price, cutting precision, performance, and reliability take precedence.

Mitre saw SLB230G

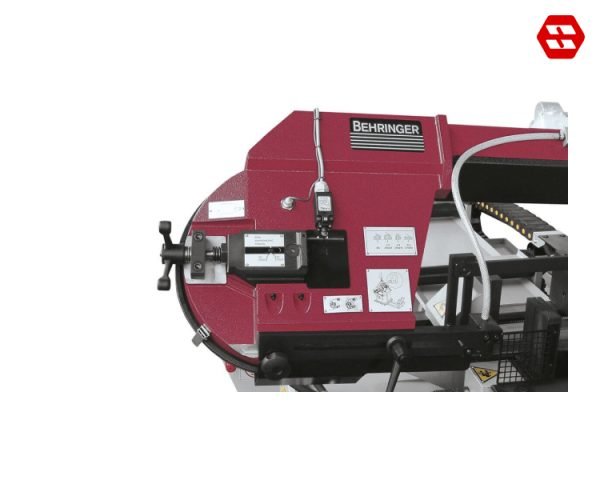

Saw Band Tensioning

The saw band is tensioned manually. The setting of the correct tensioning force is displayed optically. In order to prevent overloading during the sawing process, the pressure is equalized by means of a pretensioned disc spring package. In the event of a band break, the sawing machine switches off automatically.

Saw Band Tensioning

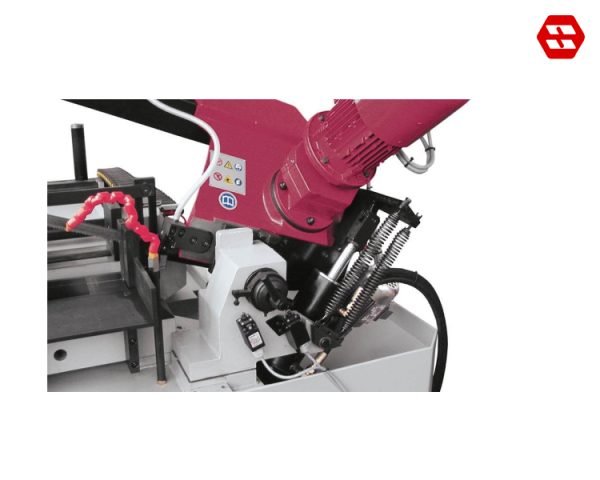

Hydraulic Saw Feed

The saw feed is hydraulically controlled with an infinitely adjustable feed rate. The lifting and lowering of the saw frame is controlled by push buttons.

Hydraulic Saw Feed

Control Panel

The Control Panel, an intuitive interface designed to streamline operation and control of industrial machinery, ensuring efficient performance and ease of use.

Control Panel 1

Features of The Mitre Saw SLB230DG

Material Handling from a Single Source.

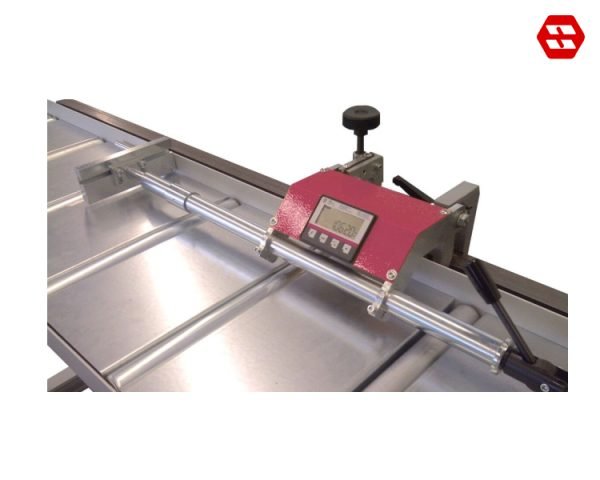

The SLB series can be perfectly tailored to your application with roller conveyors and measuring devices.

Robust Material Vice.

The material is clamped using a manual vice with a quick-release lever.

Standard Measuring Stop.

With millimeter scale up to 600 mm.

Saw Band Tensioning.

The saw band is tensioned manually. The setting of the correct tensioning force is displayed optically.

Miter Adjustment.

The miter angle can be adjusted to one side. The saw frame is locked by means of a quick-release clamp.

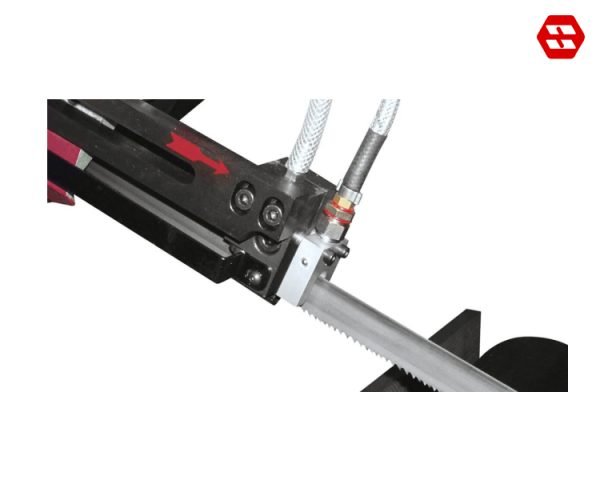

Precise Band Guides.

Combination of roller and carbide guide of the saw band. Adjustment of the movable band guide according to the cutting width.

Coolant System.

The machine is equipped with 2 regulated coolant nozzles. The coolant tank can be removed for easy cleaning.

Technical Data Mitre Saw SLB230DG

Cutting Range
Cutting range 90° round240 mm
Cutting range 90° flat310 x 200 mm
Cutting range 90° flat270 x 240 mm
45° Miter right round175 mm
45° Miter right flat170 x 170 mm
45° Miter right upright155 x 240 mm
30° Miter right round110 mm
30° Miter right flat105 x 105 mm
30° Miter right upright100 x 140 mm
45° Miter left round150 mm
45° Miter left square135 x 135 mm
45° Miter left flat145 x 125 mm
45° Miter left upright65 x 240 mm
Smallest dimension to be sawn round10 mm
Smallest dimension to be sawn flat10 x 6 mm
Performance Characteristics
Drive power0.7 / 1.33 kW
Blade speed35 / 70 m/min
Saw blade dimensions2,700 x 27 x 0.9 mm
Dimensions and Weight
Length1,600 mm
Width840 mm
Height1,900 mm
Weight480 kg
Material support height990 mm
